Regional and Local Sea Level Change#

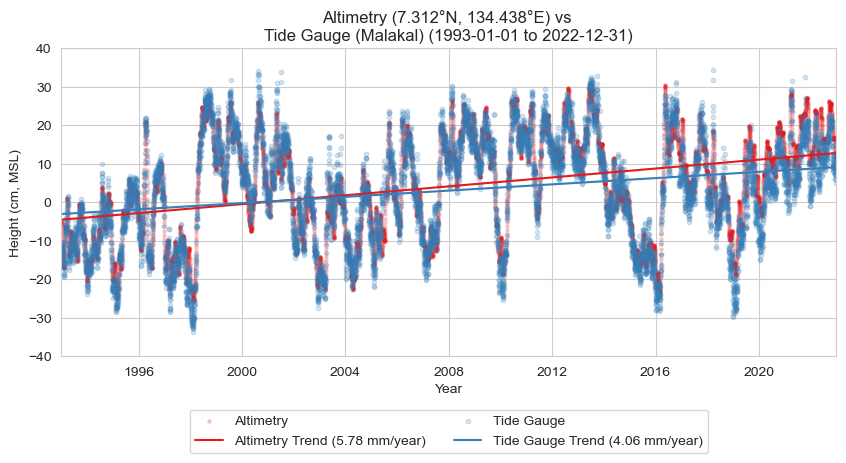

../../../_images/5beea4b029d66dfe5a26966d57297833ddbc60733256fa1d65c19469e5bff174.png

Since the start of continuous satellite measurements of global sea level in 1993, the absolute mean sea level in the vicinity of the Malakal tide gauge has risen by cm ( in). This compares to a relative value of cm ( in) measured by the tide gauge over this same time period. These values correspond to satellite-derived and station-derived rates of mm ( in) per year and mm ( in) per year, respectively. Differences in the rates of absolute (satellite-measured) and relative (tide gauge measured) sea level rise is largely attributable to vertical land motion. The sea level near Palau is rising faster than the global average, with satellite data showing a global mean sea level (GMSL) rise of 4.4 mm (0.17 in) per year (Willis et al., 2023).

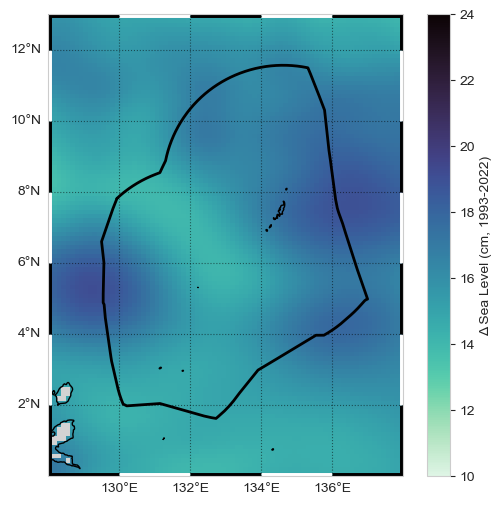

In this notebook, we’ll be creating a table, a map, and a time series plot of absolute and regional sea level change at the Malakal, Palau tide gauge station from 1993-2022. Absolute sea level, typically measured by satellite altimetry, refers to the height of the sea surface relative to a reference ellipsoid. Here, we’ll use the global ocean gridded L4 Sea Level Anomalies (SLA) available from Copernicus, which is the sea surface height (SSH) minus the mean sea surface (MSS), where the MSS is the temporal mean of SSH over a given period. Relative sea level is measured by a tide gauge, and is the sea level relative to land at that location. Differences between the two measurements can arise from vertical land motion, regional oceanographic conditions like currents, and changes to the gravitational field (affecting the geoid).

Download Files: Map | Time Series Plot | Table

Setup#

First, we need to import all the necessary libraries.

# import necessary libraries
import numpy as np
import xarray as xr
import datetime as dt
from pathlib import Path
import pandas as pd
import os
import os.path as op
import sys

# data retrieval libraries
import requests
from urllib.request import urlretrieve #used for downloading files
import json
import copernicusmarine

# data processing libraries
from scipy import stats
import seaborn as sns
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import matplotlib.pyplot as plt

from myst_nb import glue #used for figure numbering when exporting to LaTeX

sys.path.append("../../../functions")
from data_downloaders import download_oni_index, download_uhslc_data

Next, we’ll establish our directory for saving and reading data, and our output files.

data_base_dir =  Path('../../../data')
path_figs = "../../../matrix_cc/figures"
data_dir = Path(data_base_dir,'sea_level')
output_dir = data_base_dir

# Create the output directory if it does not exist
output_dir.mkdir(exist_ok=True)
data_dir.mkdir(exist_ok=True)

# Also let's just make our figure sizes the same:
plt.rcParams['figure.figsize'] = [10, 4]  # Set a default figure size for the notebook

Retrieve Data Sources#

We are interested in getting tide gauge and alitmetry data for Palau (and its EEZ) for 1993 through 2022. Let’s first establish where the tide gauge is by looking at the tide gauge dataset.

Retrieve the location of the Malakal, Palau tide gauge#

url = 'https://uhslc.soest.hawaii.edu/data/meta.geojson' #<<--- THIS IS A "HIDDEN" URL (Hard to find by clicking around the website.)
uhslc_id = 7

#parse this url to get lat/lon of Malakal tide gauge
r = requests.get(url)
data = r.json()
for i in range(len(data['features'])):
    if data['features'][i]['properties']['uhslc_id'] == uhslc_id:
        lat = data['features'][i]['geometry']['coordinates'][1]
        lon = data['features'][i]['geometry']['coordinates'][0]
        station = data['features'][i]['properties']['name']
        country = data['features'][i]['properties']['country']
        break

lat,lon,station, country

(7.33, 134.463, 'Malakal', 'Palau')

Next, let’s establish a period of record from 1993-2022.

# establish the time period of interest
start_date = dt.datetime(1993,1,1)
end_date = dt.datetime(2022,12,31)

# also save them as strings, for plotting
start_date_str = start_date.strftime('%Y-%m-%d')
end_date_str = end_date.strftime('%Y-%m-%d')

glue("station",station,display=False)
glue("country",country, display=False)
glue("startDateTime",start_date_str, display=False)
glue("endDateTime",end_date_str, display=False)

Retrieve the EEZ boundary for Palau#

Next we’ll define the area we want to look at using the EEZ boundary. This can be obtained from the Pacific Environmental Data Portal. For now it’s in the data directory.

# Retrieve the EEZ for Palau
import geopandas as gpd
eezPath = op.join(os.getcwd(), '..', '..','..', 'data/Palau_EEZ/pw_eez_pol_april2022.shp')

# read the shapefile
palau_shp = gpd.read_file(eezPath)
# extract the coordinates of the EEZ
geometry = palau_shp['geometry']

# get the lat and lon of the EEZ
palau_eez = np.array(geometry[0].exterior.coords.xy).T

# get the min and max lat and lon of the EEZ, helpful for obtaining CMEMS data
min_lon = np.min(palau_eez[:,0])
max_lon = np.max(palau_eez[:,0])
min_lat = np.min(palau_eez[:,1])
max_lat = np.max(palau_eez[:,1])

Retrieve altimetry data#

We are using the global ocean gridded L4 Sea Surface Heights and Derived Variables from Copernicus, available at https://doi.org/10.48670/moi-00148.

To download a subset of the global altimetry data, run get_CMEMS_data.py from this directory in a terminal with python >= 3.9 + copernicus_marine_client installed OR uncomment out the call to get_CMEMS_data and run it in this notebook. To read more about how to download the data from the Copernicus Marine Toolbox (new as of December 2023), visit https://help.marine.copernicus.eu/en/articles/7949409-copernicus-marine-toolbox-introduction.

Large data download!

Getting errors on the code block below? Remember to uncomment “get_CMEMS_data()” to download. Note that if you change nothing in the function, it will download ~600 MB of data, which may take a long time!! You will only need to do this once. The dataset will be stored in the data directory you specify (which should be the same data directory we defined above).

fname_cmems = 'cmems_L4_SSH_0.125deg_1993_2025.nc'

# check if the file exists, if not, download it
if not os.path.exists(data_dir / fname_cmems):
    print('You will need to download the CMEMS data in a separate script')
    get_CMEMS_data(data_dir) #<<--- COMMENT OUT TO AVOID ACCIDENTAL DATA DOWNLOADS.
else:
    print('CMEMS data already downloaded, good to go!')

# open the CMEMS data
ds = xr.open_dataset(data_dir / fname_cmems, engine="h5netcdf", chunks={"latitude": 40, "longitude": 40})

# slice the data to time 1993-01-01 to 2022-12-31
ds = ds.sel(time=slice(start_date, end_date))
ds

CMEMS data already downloaded, good to go!

<xarray.Dataset> Size: 3GB
Dimensions:    (time: 10957, latitude: 120, longitude: 120)
Coordinates:
  * latitude   (latitude) float32 480B 0.0625 0.1875 0.3125 ... 14.81 14.94
  * longitude  (longitude) float32 480B 125.1 125.2 125.3 ... 139.7 139.8 139.9
  * time       (time) datetime64[ns] 88kB 1993-01-01 1993-01-02 ... 2022-12-31
Data variables:
    adt        (time, latitude, longitude) float64 1GB dask.array<chunksize=(10957, 40, 40), meta=np.ndarray>
    sla        (time, latitude, longitude) float64 1GB dask.array<chunksize=(10957, 40, 40), meta=np.ndarray>
Attributes:
    references:                http://marine.copernicus.eu
    Conventions:               CF-1.6
    comment:                   Sea Surface Height measured by Altimetry and d...
    title:                     DT merged all satellites Global Ocean Gridded ...
    source:                    Altimetry measurements
    history:                   2024-10-23 12:55:06Z: Creation
    institution:               CLS, CNES
    contact:                   servicedesk.cmems@mercator-ocean.eu
    copernicusmarine_version:  2.0.0a4

Process the data#

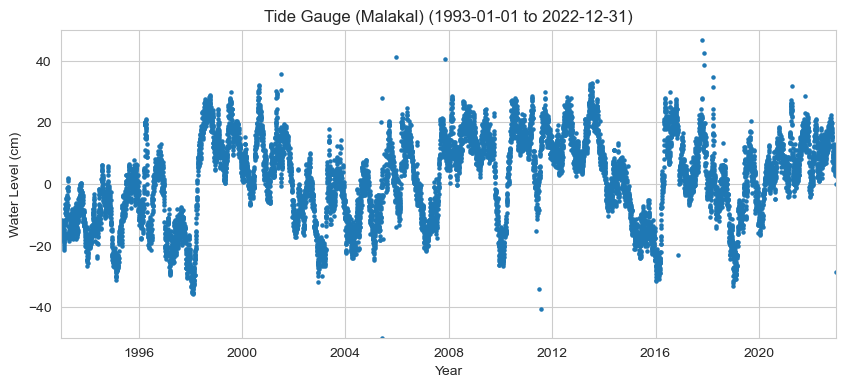

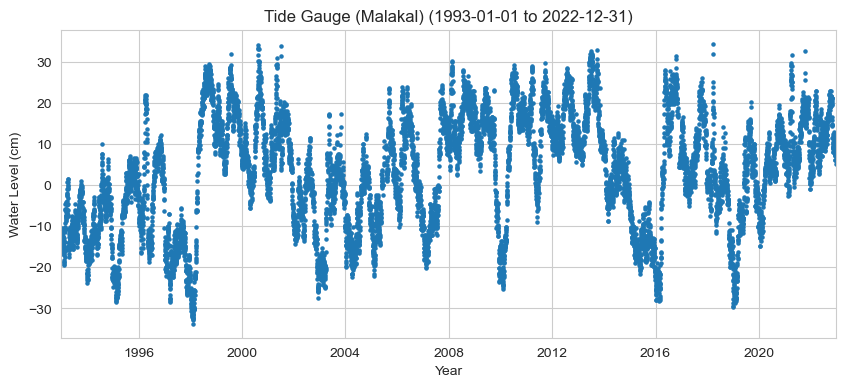

Now we’ll convert tide gauge data into a daily record for the POR in units of meters to match the CMEMS data.

The next code block:

extracts tide gauge data for the period 1993-2022
converts it to meters
removes any NaN values
resamples the data to daily mean
and normalizes it relative to the 1993-2012 epoch.

The resulting data is stored in the variable ‘rsl_daily’ with units in meters.

Run a quick check to see if the Ab SL from CMEMS is in fact zeroed about the 1993-2012 epoch. Curse the details.

# Normalize tide gauge data to CMEMS 1993-2012 epoch
epoch_daily_mean_cmems = ds['sla'].sel(
    time=slice(epoch_start, epoch_end)
).sel(
    longitude=lon, latitude=lat, method='nearest'
).mean(dim='time')

formatted_mean = format(epoch_daily_mean_cmems.values, ".2f")

# Print the mean with a note to re-check source data
print(
    f'The mean for the [{epoch_start},{epoch_end}] epoch of the SLA is {formatted_mean} m. '
)

# adjust altimetry anomalies to be relative to MSL (NTDE) reference frame
ds['sla'] = ds['sla'] -epoch_daily_mean_cmems+ epoch_daily_mean - epochNTDE_daily_mean

The mean for the [1993-01-01,2011-12-31] epoch of the SLA is 0.02 m.

Clip#

Next we’ll clip the Altimetry Data Set to the area/grid of interest. For now, we’ll focus only on the grid cell nearest to the Malakal tide gauge.

sla = ds['sla'].sel(time=slice(start_date, end_date))
time_cmems = pd.to_datetime(sla['time'].values)

# Extract data for the nearest point to the tide gauge location
sla_nearest = sla.sel(longitude=lon, latitude=lat, method='nearest')

sla_nearest_lat = sla_nearest['latitude'].values
sla_nearest_lon = sla_nearest['longitude'].values

# Format lat lon strings to have decimal symbol and N/S and E/W
lat_str = f'{np.abs(sla_nearest_lat):.3f}\u00B0{"N" if sla_nearest_lat > 0 else "S"}'
lon_str = f'{np.abs(sla_nearest_lon):.3f}\u00B0{"E" if sla_nearest_lon > 0 else "W"}'

print(f'The closest altimetry grid point is {lat_str}, {lon_str}')
sla_nearest

The closest altimetry grid point is 7.312°N, 134.438°E

<xarray.DataArray 'sla' (time: 10957)> Size: 88kB
dask.array<getitem, shape=(10957,), dtype=float64, chunksize=(10957,), chunktype=numpy.ndarray>
Coordinates:
    latitude   float32 4B 7.312
    longitude  float32 4B 134.4
  * time       (time) datetime64[ns] 88kB 1993-01-01 1993-01-02 ... 2022-12-31

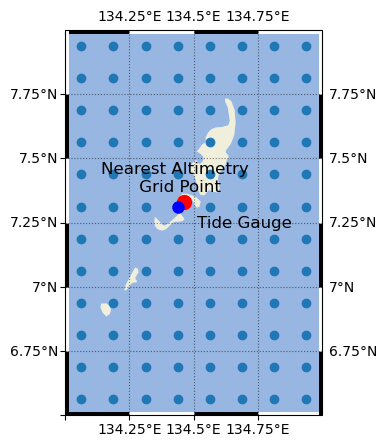

Let’s make a map to determine exactly where these points are in space. First we’ll define a function to prettify the map, which we’ll use for the rest of the notebook.

Text(134.4375, 7.362500190734863, 'Nearest Altimetry \n Grid Point')

../../../_images/db85625195c4fb3bd578e3e1c32ee61842ff393e64e8de1d9a5d4992e107233a.png

Plot the timeseries#

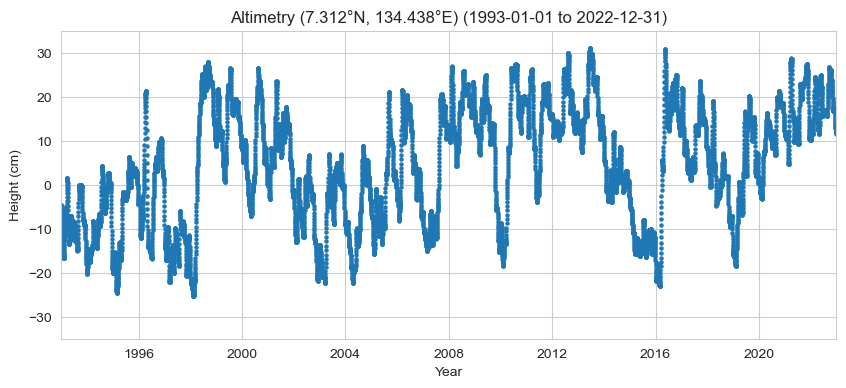

Here, we’ll plot the time series of the altimetry data at the nearest location to the tide gauge (aka ‘sla_nearest’). The units of sla_nearest are in meters, so we’ll multiply by 100 to plot in centimeters.

# Set the style of the plot
sns.set_style("whitegrid")

# Set the style of the plot
sns.set_style("whitegrid")

# Create a color palette
palette = sns.color_palette("Paired")

# Create the figure and the axes
fig, ax = plt.subplots()

# Plot the data

# plot altimetry data
ax.scatter(sla_nearest['time'], 100*sla_nearest, label='Altimetry', color=palette[1], alpha=1, s= 5)

# Set the title and labels
ax.set_title(f'Altimetry ({lat_str}, {lon_str}) ({start_date_str} to {end_date_str})')
ax.set_xlabel('Year')
ax.set_ylabel('Height (cm)')

# Set the y limits
ax.set_ylim([-35, 35])

# Set the x limits
ax.set_xlim([start_date, end_date])

(np.float64(8401.0), np.float64(19357.0))

../../../_images/3924cc6905e34333aa7e29836fd756602eef4438a3f89400c01d2bf07c625564.png

Calculate change#

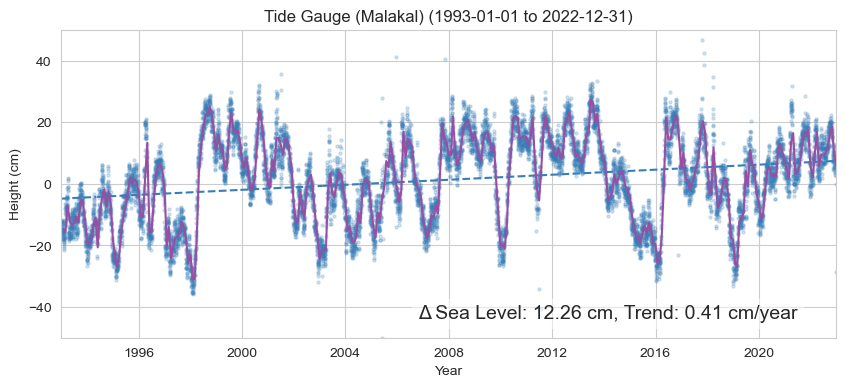

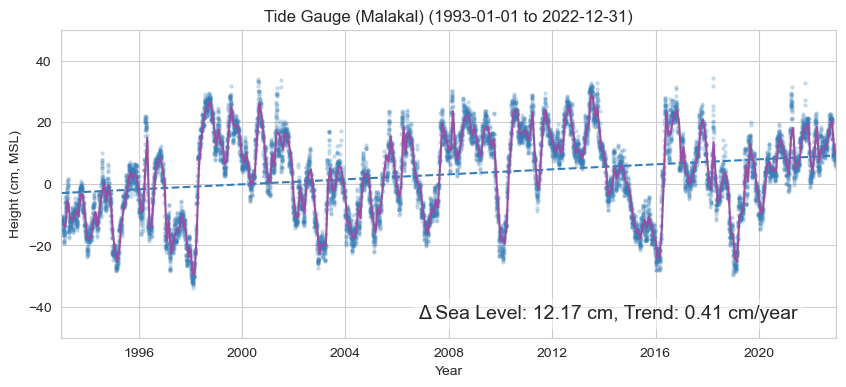

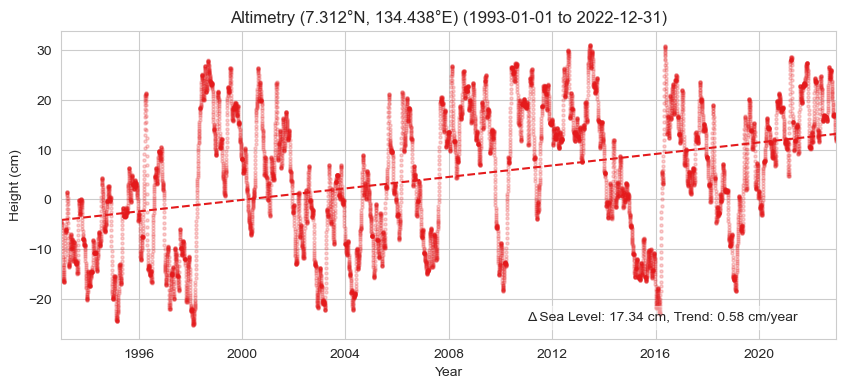

Now we have all of our data sources, we’ll calculate the absolute and relative sea level change (magnitude in cm) at this location for the Period of Record (1993-2022).

To do this, we’ll first define a function that calculates the sea level change magnitude.

Show code cell content Hide code cell content

import statsmodels.api as sm
from joblib import Parallel, delayed

def process_trend_with_nan(sea_level_anomaly,n_jobs=1):

    # Flatten the data and get a time index
    # first ensure time is the first dimension regardless of other dimensions
    sea_level_anomaly = sea_level_anomaly.transpose('time', ...)
    sla_flat = sea_level_anomaly.values.reshape(sea_level_anomaly.shape[0], -1)
    time_index = pd.to_datetime(sea_level_anomaly.time.values).to_julian_date()

    detrended_flat = np.full_like(sla_flat, fill_value=np.nan)
    trend_rates = np.full(sla_flat.shape[1], fill_value=np.nan)
    p_values = np.full(sla_flat.shape[1], fill_value=np.nan)

    def compute_trend(y,i):
        mask = ~np.isnan(y)
        if np.any(mask):
            time_masked = time_index[mask]
            y_masked = y[mask]
            slope, intercept, r_value, p_value, _ = stats.linregress(time_masked, y_masked)
            trend = slope * time_index + intercept
            return slope, trend, p_value
        return np.nan, np.nan

    #run in parallel
    results = Parallel(n_jobs=n_jobs)(delayed(compute_trend)(sla_flat[:,i],i) for i in range(sla_flat.shape[1]))
    trend_rates, p_values = zip(*results)

    #convert to numpy arrays
    trend_rates = np.array(trend_rates)
    p_values = np.array(p_values)

    # compute magnitude of trend
    sea_level_trend = np.outer(time_index, trend_rates)
    trend_mag = sea_level_trend[-1] - sea_level_trend[0]

    # compute time magnitude
    times = pd.to_datetime(sea_level_anomaly['time'].values)
    time_mag = (times[-1] - times[0]).days/365.25 # in years

    # compute trend rate
    trend_rate = trend_mag / time_mag

    trend_mag= xr.DataArray(trend_mag, coords=[("latitude", sla.latitude), ("longitude", sla.longitude)])
    trend_rate= xr.DataArray(trend_rate, coords=[("latitude", sla.latitude), ("longitude", sla.longitude)])
    sea_level_trend = xr.DataArray(sea_level_trend, coords=[("time", sea_level_anomaly.time), ("latitude", sla.latitude), ("longitude", sla.longitude)])

    return trend_mag, sea_level_trend, trend_rate, np.nanmean(p_values)


    # # Loop over each grid point
    # for i in range(sla_flat.shape[1]):
    #     # Get the time series for this grid point
    #     y = sla_flat[:,i]
    #     mask = ~np.isnan(y)

    #     detrended_flat = np.full_like(sla_flat, fill_value=np.nan)
    #     trend_rates = []
    #     p_values = []

    #     if np.any(mask):
    #         time_masked = time_index[mask]
    #         y_masked = y[mask]

    #         X = sm.add_constant(time_masked)
    #         model = sm.OLS(y_masked, X).fit(cov_type='nonrobust')

    #         trend = model.params[1] * time_index + model.params[0]
    #         detrended_flat[:, i] = y - trend

    #         trend_rates.append(model.params[1])  # Extract the slope
    #         p_values.append(model.pvalues[1])  # Corrected p-value

    #         # slope, intercept, r_value, p_value, _ = stats.linregress(time_masked, y_masked)
    #         # trend = slope * time_index + intercept

    #         detrended_flat[:,i] = y - trend

    # detrended = detrended_flat.reshape(sea_level_anomaly.shape)

    # # Calculate trend magnitude
    # sea_level_trend = sea_level_anomaly - detrended
    # trend_mag = sea_level_trend[-1] - sea_level_trend[0]

    # times = pd.to_datetime(sea_level_anomaly['time'].values)
    # time_mag = (times[-1] - times[0]).days/365.25 # in years

    # trend_rate = trend_mag / time_mag


    # return trend_mag, sea_level_trend, trend_rate , np.mean(p_values) # corrected p-value

Now we’ll run that function for every grid point in our dataset, and make special variables for our proxy tide gauge location.

trend_mag_cmems, trend_line_cmems, trend_rate_cmems, p_value_cmems, trend_err_cmems = process_trend_with_nan(sla)

trend_mag_asl, trend_line_asl, trend_rate_asl, p_value_asl,trend_err_asl = process_trend_with_nan(sla_nearest)

Calculate the weighted mean for the region of interest. (Probably not necessary for this application ???)

# calculate the area weights as cosine of latitude
# For a rectangular grid, this is equivalent to multiplying by the grid cell area
weights = np.cos(np.deg2rad(sla.latitude))
weights.name = "weights"

# apply weights to the trend data
trend_mag_weighted = trend_mag_cmems.weighted(weights)

# calculate the regional mean
trend_mag_regional = trend_mag_weighted.mean(dim=('latitude', 'longitude'))

# prepare the output string
output = (
    'The regional magnitude of sea level change is {:.2f} cm for the time '
    'period bounded by {} and {}.'
).format(100*trend_mag_regional.values, start_date_str, end_date_str)

print(output)

The regional magnitude of sea level change is 15.33 cm for the time period bounded by 1993-01-01 and 2022-12-31.

Plot a map#

Plot the Results (in a map that includes the EEZ) – MAP

import warnings
warnings.filterwarnings('ignore', category=RuntimeWarning)
xlims = [128, 138]
ylims = [0, 13]
vmin, vmax = 10, 24


fig, ax, crs,cmap = plot_map(vmin,vmax,xlims,ylims)

# plot the trend*100 for centimeters
trend_mag_cmems_cm = trend_mag_cmems * 100

# plot a map of the magnitude of SL change in centimeters
trend_mag_cmems_cm.plot(ax=ax, transform=crs,
                         vmin=vmin, vmax=vmax, cmap=cmap, add_colorbar=True,
                         cbar_kwargs={'label': 'Δ Sea Level (cm, 1993-2022)'},
)

# add the EEZ
ax.plot(palau_eez[:, 0], palau_eez[:, 1], transform=crs, color='black', linewidth=2)


# Call the function to add the zebra frame
plot_zebra_frame(ax, lw=5, segment_length=2, crs=crs)
plt.savefig(op.join(path_figs, 'F10_SeaLevel_map.png'), dpi=300, bbox_inches='tight')

../../../_images/3e234abef0e259dd367bbff23245d0ba23b39a9ed94d3b8c8e37bc727abb64aa.png

Plot time series#

Now we’ll plot a time series that includes a trend line, the Absolute Sea Level Change (magnitude in cm) within area/s in proximity to the Tide Station/s

trend_mag_asl.values

array(0.17336469)

# Set the style of the plot
sns.set_style("whitegrid")

# Create a color palette
palette = sns.color_palette("Set1")

# Plot the timeseries
# Create the figure and the axes
fig, ax = plt.subplots()

# plot altimetry data
ax.scatter(sla_nearest['time'], 100*sla_nearest, label='Altimetry',
           color=palette[0], alpha=0.2, s=5)
ax.plot(time_cmems, 100*trend_line_asl, label='Altimetry Trend',
        color=palette[0], linestyle='--')

# Set the title and labels
title = f'Altimetry ({lat_str}, {lon_str}) ({start_date_str} to {end_date_str})'
ax.set_title(title)
ax.set_xlabel('Year')
ax.set_ylabel('Height (cm)')

# Set the x limits
ax.set_xlim([start_date, end_date])

# Add a legend
trendmag_str = (f'Δ Sea Level: {100*trend_mag_asl.values:.2f} cm, '
                f'Trend: {100*trend_rate_asl.values:.2f} cm/year')

# Add text in a white box to bottom right of plot
ax.text(0.95, 0.05, trendmag_str, transform=ax.transAxes,
        verticalalignment='bottom', horizontalalignment='right',
        bbox=dict(facecolor='white', alpha=0.5))

Text(0.95, 0.05, 'Δ Sea Level: 17.34 cm, Trend: 0.58 cm/year')

../../../_images/d8add9ea56a2081643dbada1eae2481c70398eecf7e2fd7cb20a4fbaf80da549.png

Retrieve the Tide Station Data#

Plot the hourly time series#

For a quick glance at the data

# Set the style of the plot
sns.set_style("whitegrid")

# Set the style of the plot
sns.set_style("whitegrid")

# Create a color palette
palette = sns.color_palette("Paired")

# Create the figure and the axes
fig, ax = plt.subplots()

# Plot the data

# plot tide gauge data
ax.scatter(rsl_daily['time'],100*rsl_daily, label='RSL',
           color=palette[1], alpha=1, s= 5)

# Set the title, labels, and limits
ax.set(
    title=f'Tide Gauge ({station_name}) ({start_date_str} to {end_date_str})',
    xlabel='Year',
    ylabel='Water Level (cm)',
    # ylim=[-50, 50],
    xlim=[start_date, end_date]
);

../../../_images/2e4c048ae94af689fc5eee34dc96e5cb20743f179511ced89e44546deef5aeb6.png

Calculate rate and magnitude of change#

Calculate values for both the Trend (rate of change) and Magnitude of Change

# calculate the rate of change for the tide gauge
trend_mag_rsl, trend_line_rsl, trend_rate_rsl, p_value_rsl, trend_err_rsl = process_trend_with_nan(rsl_daily.sel(time=slice(start_date, end_date)))

print(f'The trend magnitude for the tide gauge is {100*trend_mag_rsl:.2f} cm.')
print(f'The trend rate for the tide gauge is {100*trend_rate_rsl:.2f} cm/year.')

The trend magnitude for the tide gauge is 12.17 cm.
The trend rate for the tide gauge is 0.41 cm/year.

Plot time series#

Now we’ll combine our daily relative sea level time series, the monthly mean, and a trend line into the same plot. We will label it with the Relative Sea Level Sea Level Change (magnitude in cm) and rate of change (cm/yr) at the Tide Station. The “zero” line is referenced to the [1993,2012] period, following the altimetry.

# make an rsl monthly mean for plotting
rsl_monthly = rsl_daily.resample(time='1ME').mean().squeeze()

# Set the style of the plot
sns.set_style("whitegrid")

# Create a color palette
palette = sns.color_palette("Set1")

# Plot the timeseries
# Create the figure and the axes
fig, ax = plt.subplots()
# plot altimetry data
ax.scatter(rsl_daily['time'], 100*rsl_daily,
           label='Tide Gauge', color=palette[1], alpha=0.2, s= 5)
ax.plot(rsl_daily['time'], 100*trend_line_rsl,
        label='Tide Gauge Trend', color=palette[1], linestyle='--')
# plot the monthly mean sea level
ax.plot(rsl_monthly['time'], 100*rsl_monthly,
        label='Tide Gauge', color=palette[3])


# Set the title and labels
ax.set_title(f'Tide Gauge ({station_name}) ({start_date_str} to {end_date_str})')
ax.set_xlabel('Year')
ax.set_ylabel('Height (cm, MSL)')

# Set the y limits
ax.set_ylim([-50, 50])

# Set the x limits
ax.set_xlim([start_date, end_date])

# Add a legend
trendmag_str = f'Δ Sea Level: {100*trend_mag_rsl:.2f} cm, Trend: {100*trend_rate_rsl:.2f} cm/year'
# Add text in a white box to bottom right of plot
ax.text(0.95, 0.05, trendmag_str, transform=ax.transAxes,
        fontsize=14, verticalalignment='bottom', horizontalalignment='right',
        bbox=dict(facecolor='white', alpha=0.5))

Text(0.95, 0.05, 'Δ Sea Level: 12.17 cm, Trend: 0.41 cm/year')

../../../_images/68ebd9fbca3ab60d03e826988cac09f587e8cea55bc504e824ea6e91c2058ed3.png

Combining both sources#

Create a Table#

That compares the results of the absolute and relative time series.

# Constants
DATA_SOURCE_ALTIMETRY = 'CMEMS SSH L4 0.125 deg (SLA)'
DATA_SOURCE_TIDE_GAUGE = 'UHSLC RQDS'
TIME_PERIOD = f'{start_date_str} to {end_date_str}'

# Calculated values
trend_mmyr_altimetry = 1000 * trend_rate_asl.values
trend_mmyr_tide_gauge = 1000 * trend_rate_rsl.values
delta_sea_level_altimetry = 100 * trend_mag_asl.values
delta_sea_level_tide_gauge = 100 * trend_mag_rsl.values


# Create DataFrame
SL_magnitude_results = pd.DataFrame({
    'Trend (mm/yr)': [trend_mmyr_altimetry, trend_mmyr_tide_gauge],
    'Trend (in/yr)': [trend_mmyr_altimetry * 0.0393701, trend_mmyr_tide_gauge * 0.0393701],
    'Δ Sea Level (cm)': [delta_sea_level_altimetry, delta_sea_level_tide_gauge],
    'Δ Sea Level (in)': [delta_sea_level_altimetry * 0.393701, delta_sea_level_tide_gauge * 0.393701],
    'Latitude': [sla_nearest_lat, rsl['lat'].values[0]],
    'Longitude': [sla_nearest_lon, rsl['lon'].values[0]],
    'Time_Period': [TIME_PERIOD, TIME_PERIOD],
    'Data_Source': [DATA_SOURCE_ALTIMETRY, DATA_SOURCE_TIDE_GAUGE],
}, index=['Altimetry', 'Tide Gauge'])

# Save to CSV
output_file_path = output_dir / 'SL_magnitude_results.csv'

# Use the path for operations, e.g., saving a DataFrame
SL_magnitude_results.to_csv(output_file_path)

# glue trend_rates to the notebook
# glue("trend_rate_rsl", trend_rate_rsl, display=False)
# glue("trend_rate_asl", trend_rate_asl, display=False)




SL_magnitude_results

	Trend (mm/yr)	Trend (in/yr)	Δ Sea Level (cm)	Δ Sea Level (in)	Latitude	Longitude	Time_Period	Data_Source
Altimetry	5.779614	0.227544	17.336469	6.825385	7.3125	134.4375	1993-01-01 to 2022-12-31	CMEMS SSH L4 0.125 deg (SLA)
Tide Gauge	4.055963	0.159684	12.165114	4.789418	7.33	134.462997	1993-01-01 to 2022-12-31	UHSLC RQDS

The cell below will save all these variables for printing:

Create a Map#

Now we’ll combine a both the tide gauge and altimetry sources into a map that includes the absolute change with the addition of an icon depicting the magnitude of relative change at the tide station.

warnings.filterwarnings('ignore', category=RuntimeWarning)
fig, ax, crs,cmap = plot_map(vmin,vmax,xlims,ylims)

# plot the trend*100 for centimeters
trend_mag_cmems_cm = trend_mag_cmems * 100

# plot a map of the magnitude of SL change in centimeters
trend_mag_cmems_cm.plot(ax=ax, transform=crs,
                         vmin=vmin, vmax=vmax, cmap=cmap, add_colorbar=True,
                         cbar_kwargs={'label': 'Δ Sea Level (cm, 1993-2022)'},
)

# add the EEZ
ax.plot(palau_eez[:, 0], palau_eez[:, 1], transform=crs, color='black', linewidth=2)
# add the tide gauge location with black outlined dot, colored by the sea level value
ax.scatter(rsl['lon'], rsl['lat'], transform=crs, s=200,
           c=100*trend_mag_rsl, vmin=vmin, vmax=vmax, cmap=cmap,
           linewidth=0.5, edgecolor='black')

plot_zebra_frame(ax, lw=5, segment_length=2, crs=crs)

glue("mag_fig", fig, display=False)

# save the figure
output_file_path = output_dir / 'SL_magnitude_map.png'
fig.savefig(output_file_path, dpi=300, bbox_inches='tight')

../../../_images/3f391a30b179fd225f79d308a6e703c57ac140b671113dcae3f27afd3f901619.png — Fig. 2 Map of absolute and relative sea level change from the altimetry and tide gauge record near Malakal, Palau station from 1993-01-01 to 2022-12-31.#

ENSO Effects on Sea Level#

Next we’ll look at the variation of sea level with El Niño and La Niña.

# add nino
p_data = 'https://psl.noaa.gov/data/correlation/oni.data'
oni = download_oni_index(p_data)

# Remove the trend from the tide gauge timeseries
detrended_rsl = rsl_daily - trend_line_rsl

# estimate the seasonal cycle (detrended_rsl is xarray)
seasonal_cycle = detrended_rsl.groupby('time.dayofyear').mean('time')

# Remove the seasonal cycle from the detrended tide gauge timeseries
deseasoned_rsl = detrended_rsl.groupby('time.dayofyear') - seasonal_cycle

# Resample the ONI index to daily frequency and align with the tide gauge timeseries
oni_daily = oni.resample('D').interpolate(method='linear')
oni_daily = oni_daily.reindex(deseasoned_rsl['time'], method='nearest')

Show code cell source Hide code cell source

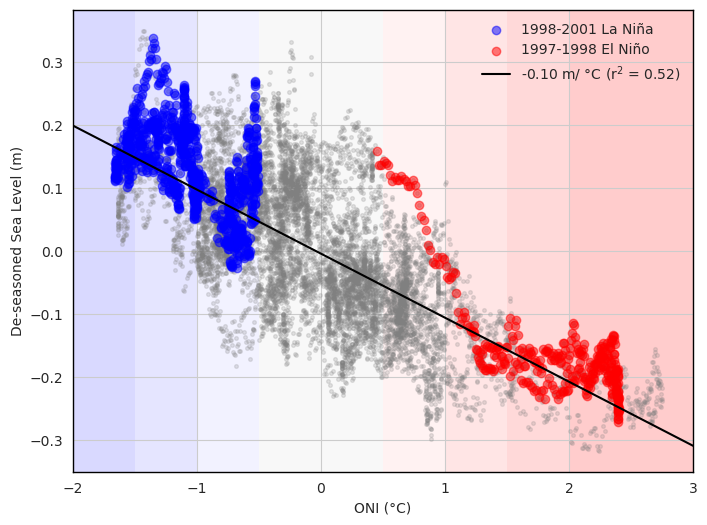

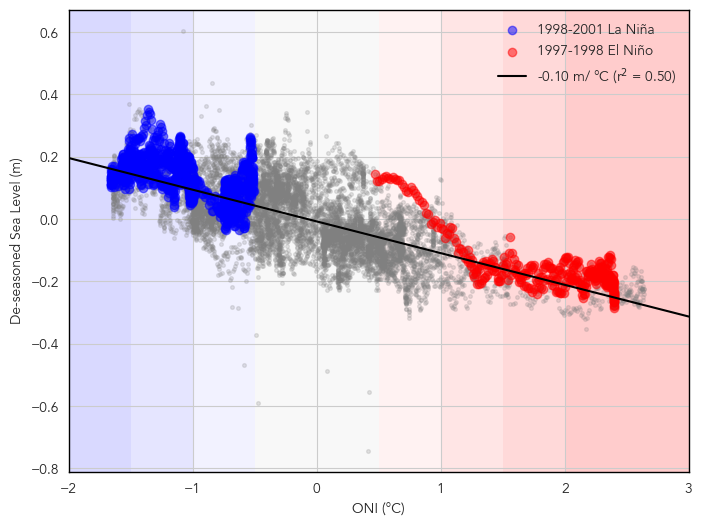

# scatter plot of oni daily and detrended sea level
# Scatter plot of ONI daily and detrended sea level
fig, ax = plt.subplots(figsize=(8,6))
ax.scatter(oni_daily, deseasoned_rsl, color='gray', alpha=0.2, s=7)
ax.set_xlabel('ONI (°C)')
ax.set_ylabel('De-seasoned Sea Level (m)')

# Emphasize the 1997-1998 and 2015-2016 El Niño events using pandas indexing
nina_1998 = deseasoned_rsl.sel(time=slice('1998-08-01', '2001-01-30'))
nino_1997 = deseasoned_rsl.sel(time=slice('1997-06-01', '1998-04-30'))

# Plot as dashed lines
ax.scatter(oni_daily.loc['1998-08-01':'2001-01-30'], nina_1998, color='blue', label='1998-2001 La Niña',alpha=0.5)
ax.scatter(oni_daily.loc['1997-06-01':'1998-04-30'], nino_1997, color='red', label='1997-1998 El Niño',alpha=0.5)

# draw a correlation line
# Keep only valid (non-NaN) indices
deseasoned_rsl_series = deseasoned_rsl.to_series()
valid_mask = ~deseasoned_rsl_series.isna()
oni_valid = oni_daily.squeeze().loc[valid_mask]
deseasoned_valid = deseasoned_rsl_series.loc[valid_mask]

slope, intercept, r_value, p_value, std_err = stats.linregress(oni_valid, deseasoned_valid, )
x = np.linspace(-2,3,100)
y = slope * x + intercept
ax.plot(x, y, color='black', linestyle='-', label=f'{slope:.2f} m/ °C (r$^2$ = {r_value**2:.2f})')

ax.set_xlim(-2,3)
ax.legend(frameon=False)
# Add shading for different ONI ranges


ax.axvspan(-2, -1.5, color='blue', alpha=0.15, linewidth=0, zorder=0)
ax.axvspan(-1.5, -1, color='blue', alpha=0.10, linewidth=0, zorder=0)
ax.axvspan(-1, -0.5, color='blue', alpha=0.05, linewidth=0, zorder=0)
ax.axvspan(-0.5, 0.5, color='gray', alpha=0.05, linewidth=0, zorder=0)
ax.axvspan(0.5, 1, color='red', alpha=0.05, linewidth=0, zorder=0)
ax.axvspan(1, 1.5, color='red', alpha=0.10, linewidth=0, zorder=0)
ax.axvspan(1.5, 2, color='red', alpha=0.15, linewidth=0, zorder=0)
ax.axvspan(2, 3, color='red', alpha=0.20, linewidth=0, zorder=0)


# spines should be black not gray

for spine in ax.spines.values():
    spine.set_edgecolor('black')
    spine.set_linewidth(1)

# set all text to DejaVu Sans
for text in ax.texts:
    text.set_fontname('DejaVu Sans')

# set all labels to DejaVu Sans
for label in ax.get_xticklabels() + ax.get_yticklabels() + ax.get_legend().get_texts() :
    label.set_fontname('DejaVu Sans')

ax.xaxis.label.set_fontname('DejaVu Sans')
ax.yaxis.label.set_fontname('DejaVu Sans')

plt.show()

# save the figure
output_file_path = output_dir / 'SL_ONI_scatter.png'
fig.savefig(output_file_path, dpi=300, bbox_inches='tight')

../../../_images/bf731c41f56ef11e1e36e80dec86089d07af5e771b0a7e4372780ca5da5acb93.png

Show code cell source Hide code cell source

# Create a DataFrame to summarize the results
summary_data = {
    'Description': ['Slope of Correlation Line',
                    'El Niño 1997-1998 Min Sea Level',
                    'El Niño 1997-1998 Median Sea Level',
                    'La Niña 1998-2000 Max Sea Level',
                    'La Niña 1998-2000 Median Sea Level',
                    'Correlation Coefficient (r)',
                    'p-value'],
    'Value': [slope,
              100*nino_1997.min().values,
              100*nino_1997.median().values,
              100*nina_1998.max().values,
              100*nina_1998.median().values,
              r_value,
              p_value],
    'units': ['m/°C', 'cm', 'cm','cm', 'cm', '', '']
}

summary_df = pd.DataFrame(summary_data)

summary_df.attrs['description'] = "Correlation of Sea Level at Malakal with ONI 1983-2024."
summary_df.attrs['source'] = "NOAA / University of Hawaii Sea Level Center"
summary_df.attrs['notes'] = "Sea level data has been deseasoned and detrended."

# Display the summary table with attributes

# Function to format values with units
def format_with_units(value, unit):
    if pd.isna(value):  # Handle NaNs
        return "N/A"
    if unit:  # Add unit only if it's not an empty string
        return f"{value:.2f} {unit}"
    return f"{value:.2f}"  # No unit, just the value

# Apply formatting
summary_df['Formatted'] = summary_df.apply(lambda row: format_with_units(row['Value'], row['units']), axis=1)

# Keep only needed columns (remove 'Value' and 'units' separately)
formatted_df = summary_df[['Description', 'Formatted']].rename(columns={'Formatted': 'Value'})

# Remove index for clean display
formatted_df = formatted_df.reset_index(drop=True)



footer_text = f"Source: {summary_df.attrs['source']}"
notes_text = f"Notes: {summary_df.attrs['notes']}"
footer_df = pd.DataFrame({'Description': [footer_text, notes_text],
                          'Value': ['','']})

# Combine summary table with footer
summary_table = pd.concat([formatted_df, footer_df], ignore_index=True)  # Removes index completely

# Apply styling
styled_df = summary_table.style.set_caption(
    summary_df.attrs['description']
).set_table_styles([
    {
        'selector': 'caption',
        'props': [('color', 'black'), ('font-size', '16px'), ('font-weight', 'bold')]
    },
    {
        'selector': 'tbody tr:last-child td, tbody tr:nth-last-child(2) td',  # Targets last two rows (footer)
        'props': [('font-style', 'italic'), ('font-align', 'center')]
    }
])



# Save the summary table to a CSV file
summary_file_path = output_dir / 'ENSO_SL_influence_summary.csv'
summary_table.to_csv(summary_file_path, index=False)


styled_df

Correlation of Sea Level at Malakal with ONI 1983-2024.
	Description	Value
0	Slope of Correlation Line	-0.10 m/°C
1	El Niño 1997-1998 Min Sea Level	-27.16 cm
2	El Niño 1997-1998 Median Sea Level	-17.61 cm
3	La Niña 1998-2000 Max Sea Level	33.81 cm
4	La Niña 1998-2000 Median Sea Level	13.63 cm
5	Correlation Coefficient (r)	-0.72
6	p-value	0.00
7	Source: NOAA / University of Hawaii Sea Level Center
8	Notes: Sea level data has been deseasoned and detrended.

Regional and Local Sea Level Change

Contents

Regional and Local Sea Level Change#

Setup#

Retrieve Data Sources#

Retrieve the location of the Malakal, Palau tide gauge#

Retrieve the EEZ boundary for Palau#

Retrieve altimetry data#

Retrieve Tide Gauge Data#

Process the data#

Clip#

Plot the timeseries#

Calculate change#

Plot a map#

Plot time series#

Retrieve the Tide Station Data#

Plot the hourly time series#

Calculate rate and magnitude of change#

Plot time series#

Combining both sources#

Create a Table#

Create a Map#

Create a Time series plot#

ENSO Effects on Sea Level#
