Estimated Phytoplankton Size

Figure. Estimated Median Phytoplankton Size from satellite. The map (top) shows the change in the estimated median phytoplankton size (μm equivalent spherical diameter, ESD) in the vicinity of Palau over the period 1998-2023 derived from satellite remotely sensed sea surface temperature and ocean color data. The grey line is the Palau EEZ. The line plot (bottom) shows the change in the estimated median phytoplankton size (μm ESD) averaged over the area within the top plot. The black line represents the trend, which is not statistically significant (p > 0.05).

Show code cell source Hide code cell source

import warnings
warnings.filterwarnings("ignore")
import os
import os.path as op
import sys

import pandas as pd
import numpy as np
import xarray as xr
import geopandas as gpd
import cartopy.crs as ccrs
import matplotlib.pyplot as plt
from myst_nb import glue

sys.path.append("../../../../indicators_setup")

from ind_setup.plotting_int import plot_timeseries_interactive, plot_oni_index_th
from ind_setup.plotting import plot_base_map, plot_map_subplots, add_oni_cat, plot_bar_probs, fontsize

sys.path.append("../../../functions")
from data_downloaders import download_ERDDAP_data, download_oni_index
from ocean import process_trend_with_nan

Setup

Define area of interest

#Area of interest
lon_range  = [129.4088, 137.0541]
lat_range = [1.5214, 11.6587]

EEZ shapefile

shp_f = op.join(os.getcwd(), '..', '..','..', 'data/Palau_EEZ/pw_eez_pol_april2022.shp')
shp_eez = gpd.read_file(shp_f)

Download Data

DATASET: https://oceanwatch.pifsc.noaa.gov/erddap/info/md50_exp/index.html

update_data = False
path_data = "../../../data"
path_figs = "../../../matrix_cc/figures"

Show code cell source Hide code cell source

base_url = 'https://oceanwatch.pifsc.noaa.gov/erddap/griddap/md50_exp.csv'
dataset_id = 'MD50'

if update_data:
    date_ini = '1998-01-01T00:00:00Z'
    date_end = '2024-12-01T00:00:00Z'
    data = download_ERDDAP_data(base_url, dataset_id, date_ini, date_end, lon_range, lat_range)
    data_xr = data.set_index(['latitude', 'longitude', 'time']).to_xarray()
    data_xr['time'] = pd.to_datetime(data_xr.time)
    data_xr = data_xr.coarsen(longitude=2, latitude=2, boundary = 'pad').mean()
    data_xr.to_netcdf(op.join(path_data, f'griddap_{dataset_id}.nc'))
else:
    data_xr = xr.open_dataset(op.join(path_data, f'griddap_{dataset_id}.nc'))

Analysis

Plotting

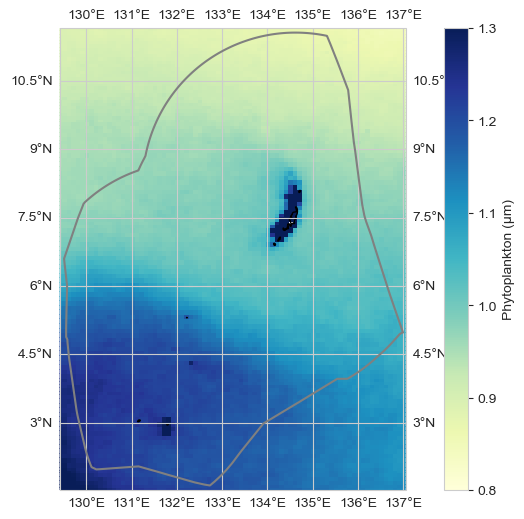

Average

fig, ax = plot_base_map(shp_eez = shp_eez, figsize = [10, 6])
im = ax.pcolor(data_xr.longitude, data_xr.latitude, data_xr.mean(dim='time')[dataset_id], transform=ccrs.PlateCarree(),
                cmap = 'YlGnBu', vmin = 0.8, vmax = 1.3)
ax.set_extent([lon_range[0], lon_range[1], lat_range[0], lat_range[1]], crs=ccrs.PlateCarree())
plt.colorbar(im, ax=ax, label='Phytoplankton size MD50 (µm ESD)')
glue("average_map", fig, display=False)
plt.savefig(op.join(path_figs, 'F16_phytoplankton_mean_map.png'), dpi=300, bbox_inches='tight')

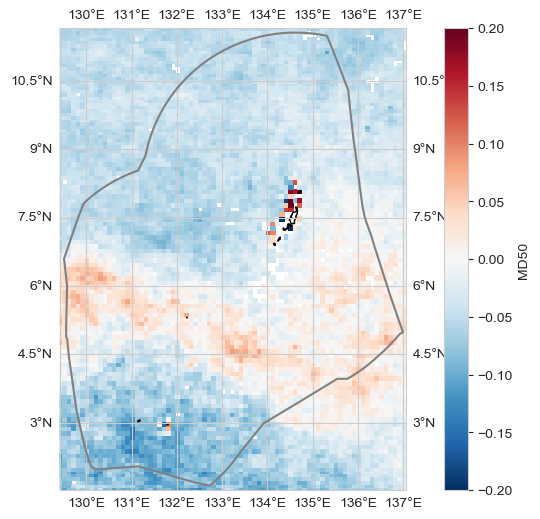

Change

trend_m, _, _, _, _ = process_trend_with_nan(data_xr[dataset_id])

fig, ax = plot_base_map(shp_eez = shp_eez, figsize = [10, 6])
im = ax.pcolor(data_xr.longitude, data_xr.latitude,
               trend_m,
                transform=ccrs.PlateCarree(),
                cmap = 'RdBu_r',
                vmin = -.2,
                vmax = .2,
                )
ax.set_extent([lon_range[0], lon_range[1], lat_range[0], lat_range[1]], crs=ccrs.PlateCarree())
plt.colorbar(im, ax=ax, label=  dataset_id)
plt.savefig(op.join(path_figs, 'F16_phytoplankton_mean_map_trend.png'), dpi=300, bbox_inches='tight')

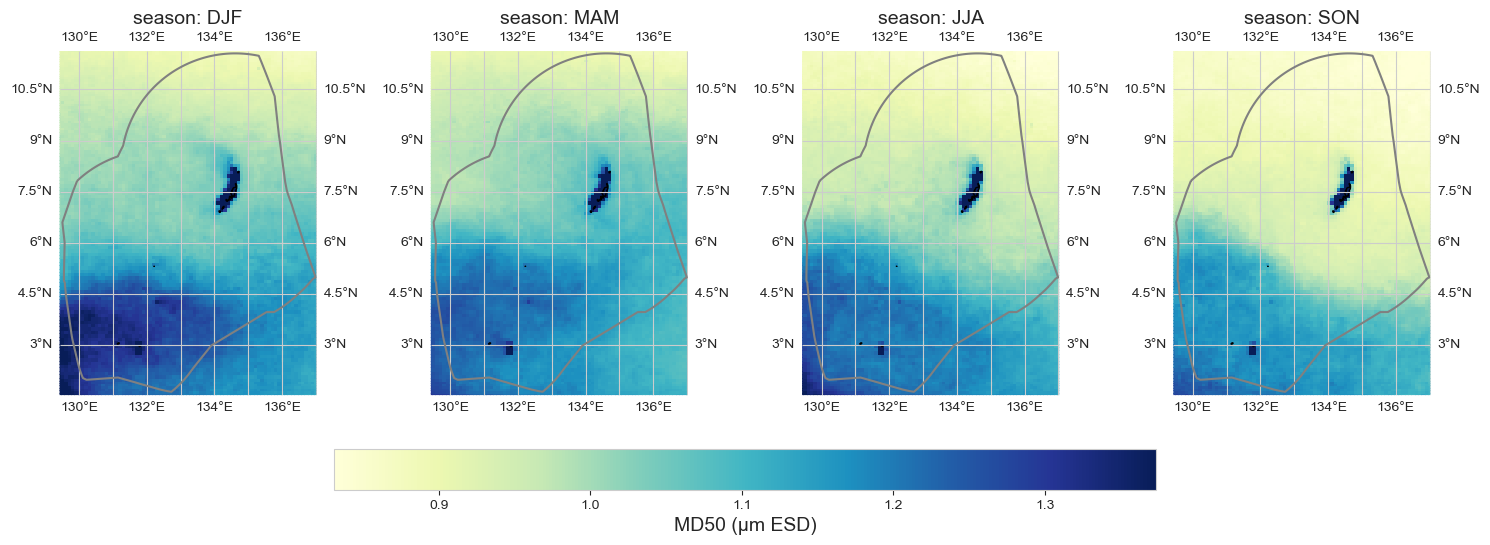

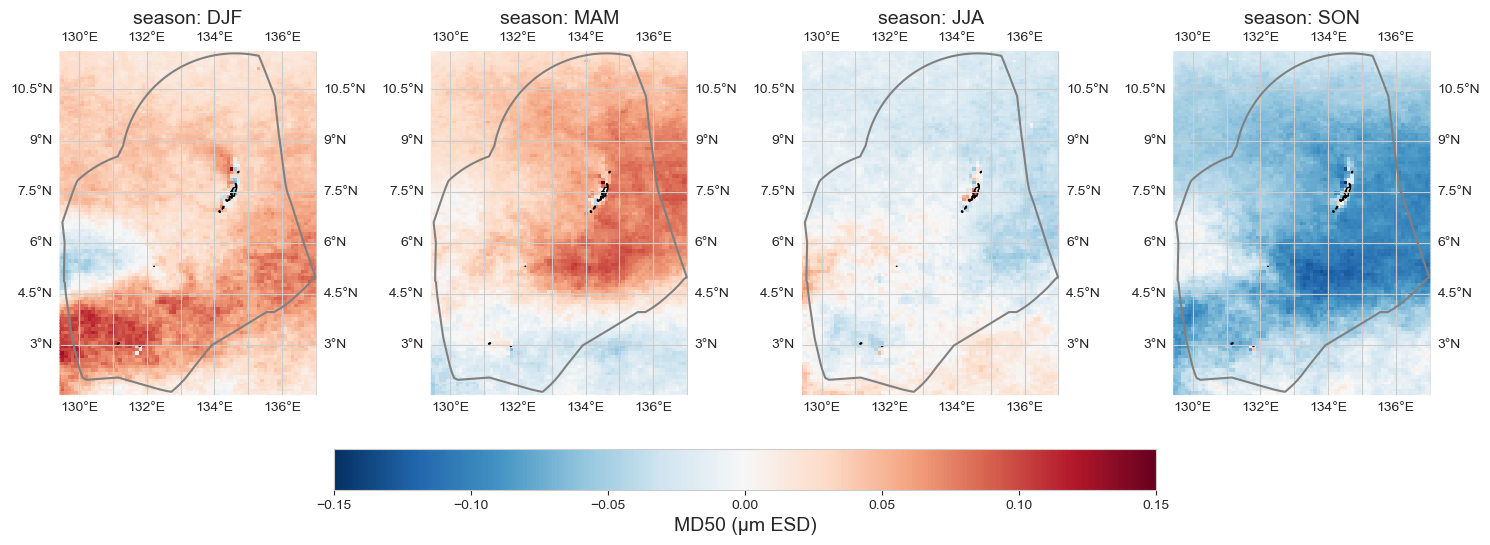

Seasonal average

data_month = data_xr.groupby('time.season').mean().sel(season = ['DJF', 'MAM', 'JJA', 'SON'])
im = plot_map_subplots(data_month, dataset_id, shp_eez = shp_eez, cmap = 'YlGnBu',
                  vmin = np.nanpercentile(data_month.min(dim = 'season')[dataset_id], 1),
                  vmax = np.nanpercentile(data_month.max(dim = 'season')[dataset_id], 99),
                  figsize = (15,11), sub_plot = [1, 4], cbar_pad = 0.05, cbar = 1)

Seasonal anomaly

data_month = data_xr.groupby('time.season').mean().sel(season = ['DJF', 'MAM', 'JJA', 'SON']) - data_xr.mean(dim='time')
im = plot_map_subplots(data_month, dataset_id, shp_eez = shp_eez,
                  cmap = 'RdBu_r', vmin=-.15, vmax=.15,
                  figsize = (15,11), sub_plot = [1, 4], cbar_pad = 0.05,
                  cbar = 1)

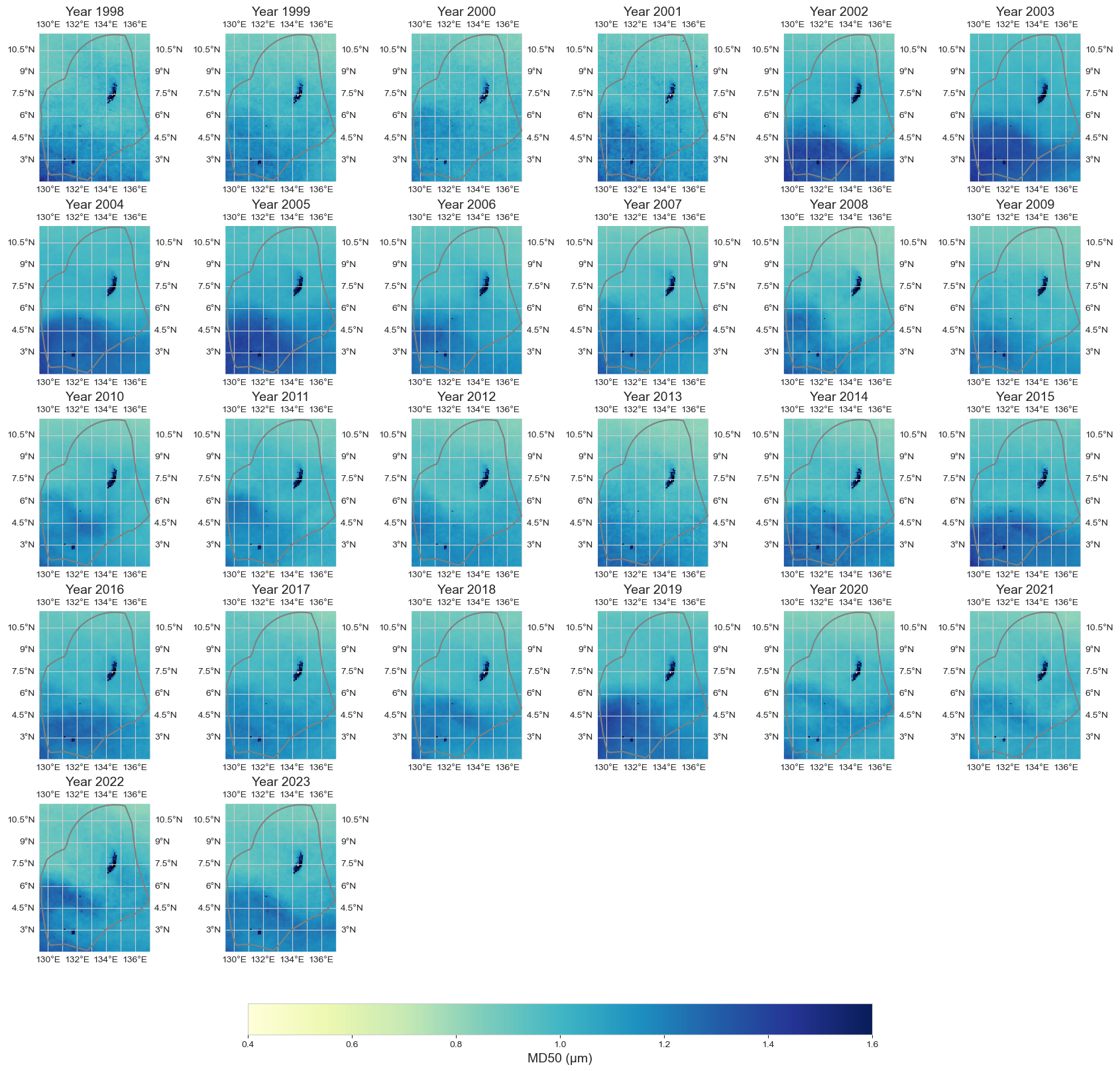

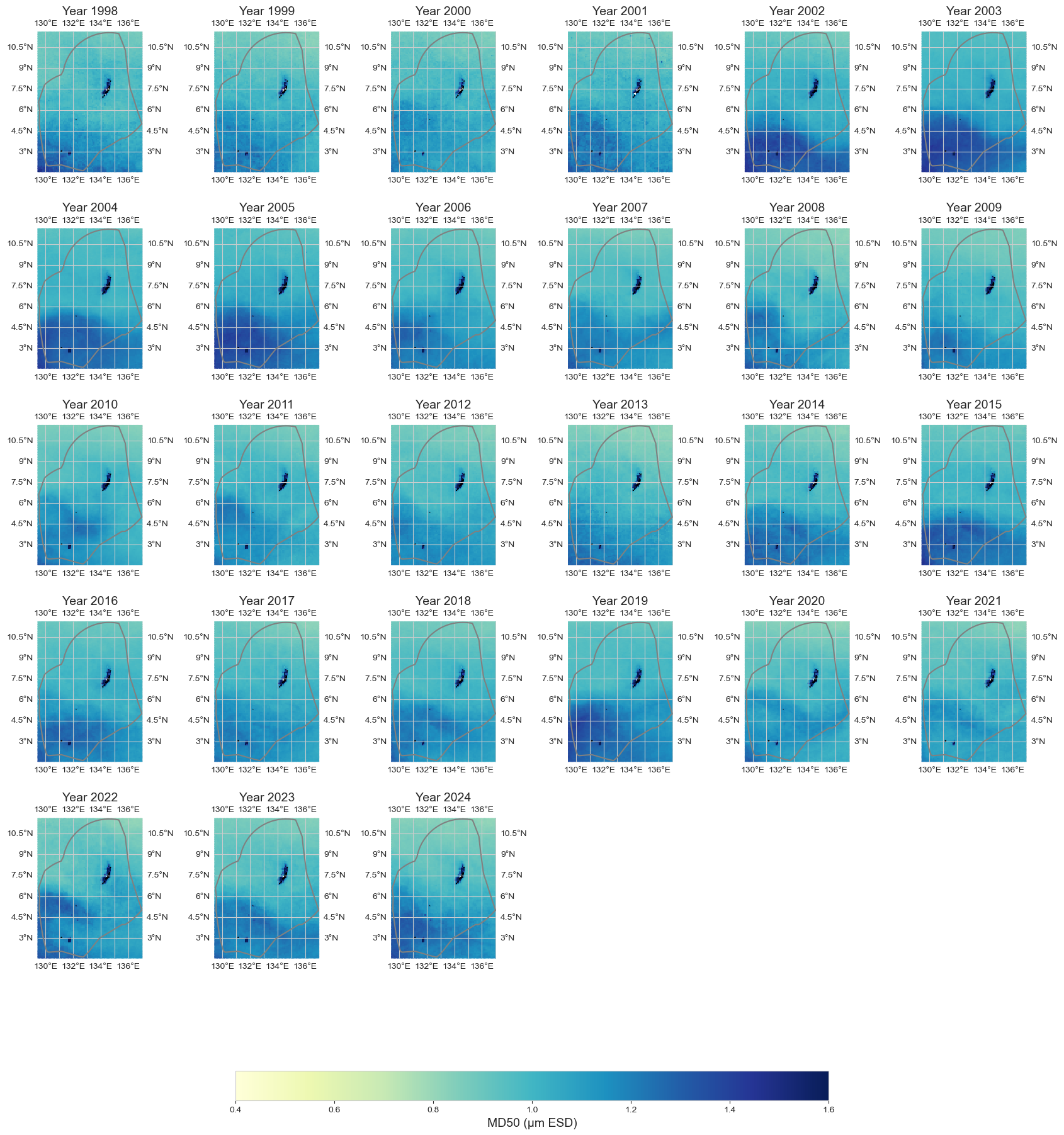

Annual average

data_y = data_xr.resample(time='1YE').mean()
fig = plot_map_subplots(data_y, 'MD50', shp_eez = shp_eez, cmap = 'YlGnBu', vmin = 0.4, vmax = 1.6, cbar = 1)

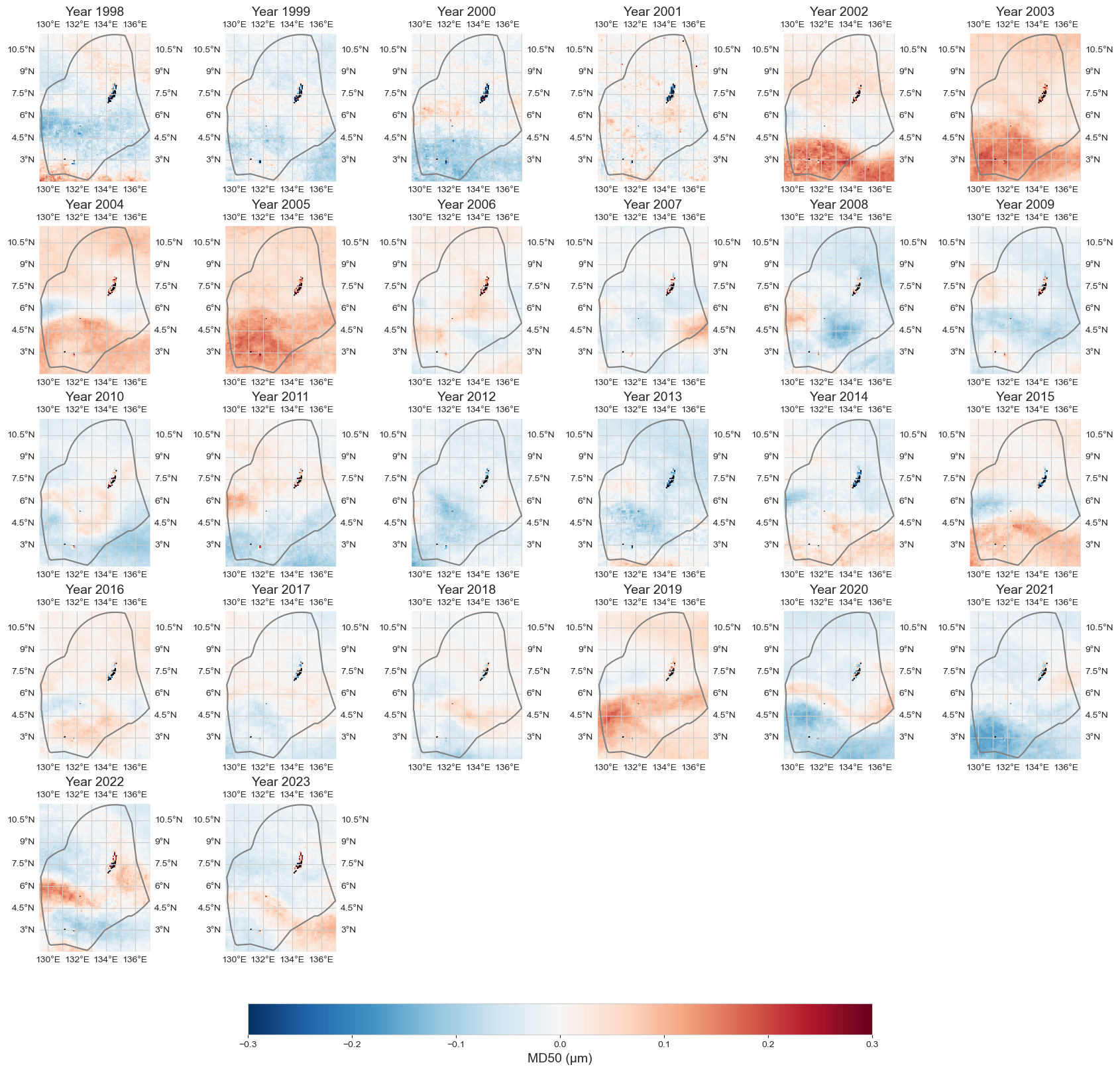

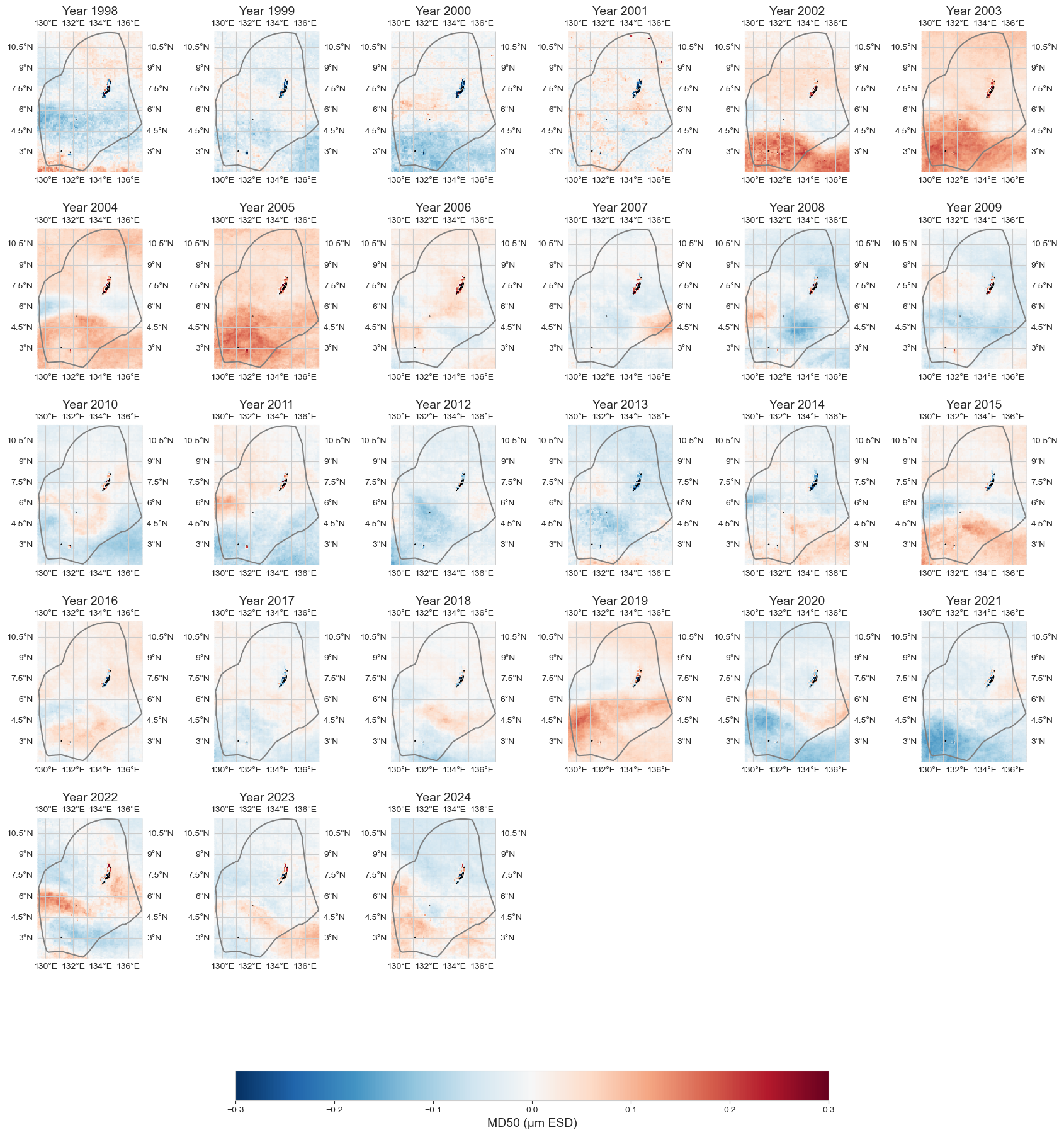

Annual anomaly

data_an = data_y - data_xr.mean(dim='time')
fig = plot_map_subplots(data_an, dataset_id, shp_eez = shp_eez, cmap='RdBu_r', vmin=-.3, vmax=.3, cbar = 1)

Average over area

dict_plot = [{'data' : data_xr.mean(dim = ['longitude', 'latitude']).to_dataframe(),
              'var' : dataset_id, 'ax' : 1, 'label' : 'Median Phytoplankton Size - MEAN AREA'},]

fig, trend = plot_timeseries_interactive(dict_plot, trendline=True, return_trend=True, scatter_dict = None, figsize = (25, 12),
                                 label_yaxes = 'Phytoplankton MD50 (µm ESD)');
fig.write_html(op.join(path_figs, 'F16_phytoplankton_mean_trend.html'), include_plotlyjs="cdn")

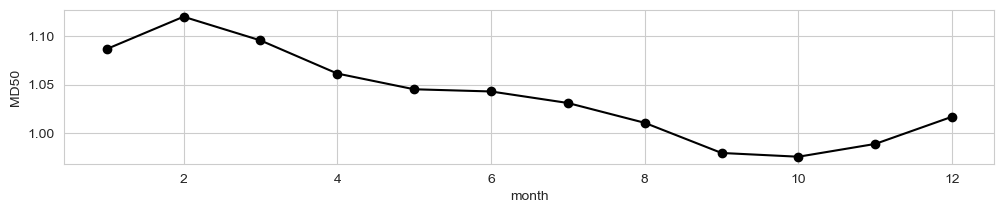

Seasonal variability

fig, ax = plt.subplots(figsize=(12,2))
data_xr.mean(dim = ['longitude', 'latitude']).groupby('time.month').mean()[dataset_id].plot(ax = ax, marker = 'o', color = 'k')

[<matplotlib.lines.Line2D at 0x19023b1d0>]

d_p = data_xr.mean(dim = ['longitude', 'latitude']).to_dataframe()

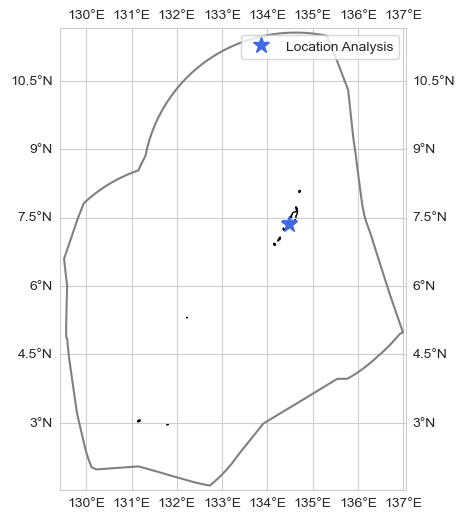

Timeseries at a given point

loc = [7.37, 134.7]
dict_plot = [{'data' : data_xr.sel(longitude=loc[1], latitude=loc[0], method='nearest').to_dataframe(),
              'var' : dataset_id, 'ax' : 1, 'label' : f'Median Phytoplankton Size at [{loc[0]}, {loc[1]}]'},]

fig, ax = plot_base_map(shp_eez = shp_eez, figsize = [10, 6])
ax.set_extent([lon_range[0], lon_range[1], lat_range[0], lat_range[1]], crs=ccrs.PlateCarree())
ax.plot(loc[1], loc[0], '*', markersize = 12, color = 'royalblue', transform=ccrs.PlateCarree(), label = 'Location Analysis')
ax.legend()

<matplotlib.legend.Legend at 0x1903a95b0>

fig = plot_timeseries_interactive(dict_plot, trendline=True, scatter_dict = None, figsize = (25, 12),
                                 label_yaxes = 'Phytoplankton MD50 (µm ESD)');

ONI index analysis

if update_data:
    p_data = 'https://psl.noaa.gov/data/correlation/oni.data'
    df1 = download_oni_index(p_data)
    df1.to_pickle(op.join(path_data, 'oni_index.pkl'))
else:
    df1 = pd.read_pickle(op.join(path_data, 'oni_index.pkl'))

lims = [-.5, .5]
plot_oni_index_th(df1, lims = lims)

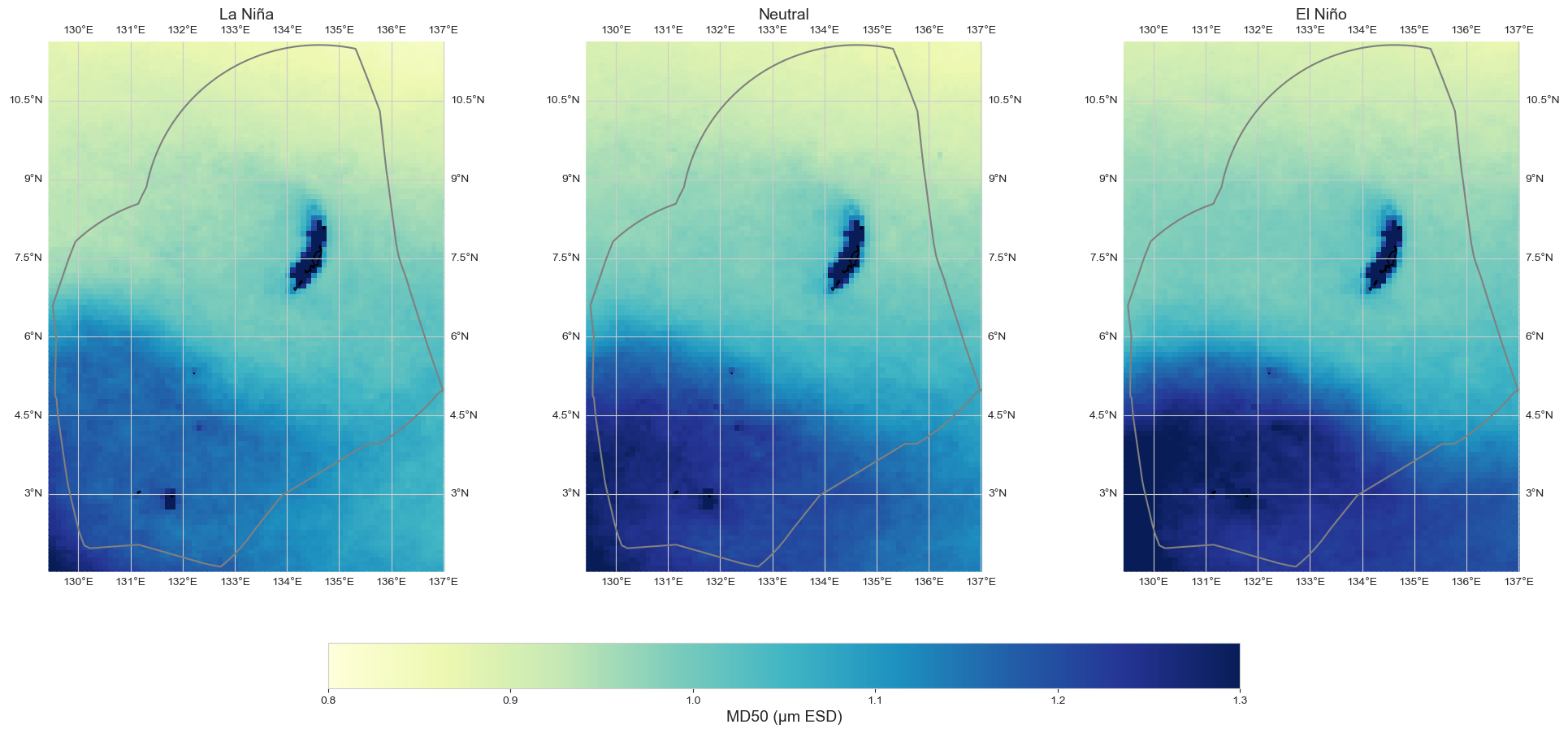

Group by ONI category

df1 = add_oni_cat(df1, lims = lims)
df1['ONI'] = df1['oni_cat']
data_xr['ONI'] = (('time'), df1.iloc[np.intersect1d(data_xr.time, df1.index, return_indices=True)[2]].ONI.values)
data_xr['ONI_cat'] = (('time'), np.where(data_xr.ONI < lims[0], -1, np.where(data_xr.ONI > lims[1], 1, 0)))
data_oni = data_xr.groupby('ONI_cat').mean()

Average

fig = plot_map_subplots(data_oni, dataset_id, shp_eez = shp_eez, cmap = 'YlGnBu', vmin = 0.8, vmax = 1.3,
                  sub_plot= [1, 3], figsize = (20, 9),  cbar = True, cbar_pad = 0.1,
                  titles = ['La Niña', 'Neutral', 'El Niño'],)
plt.savefig(op.join(path_figs, 'F16_phytoplankton_ENSO.png'), dpi=300, bbox_inches='tight')

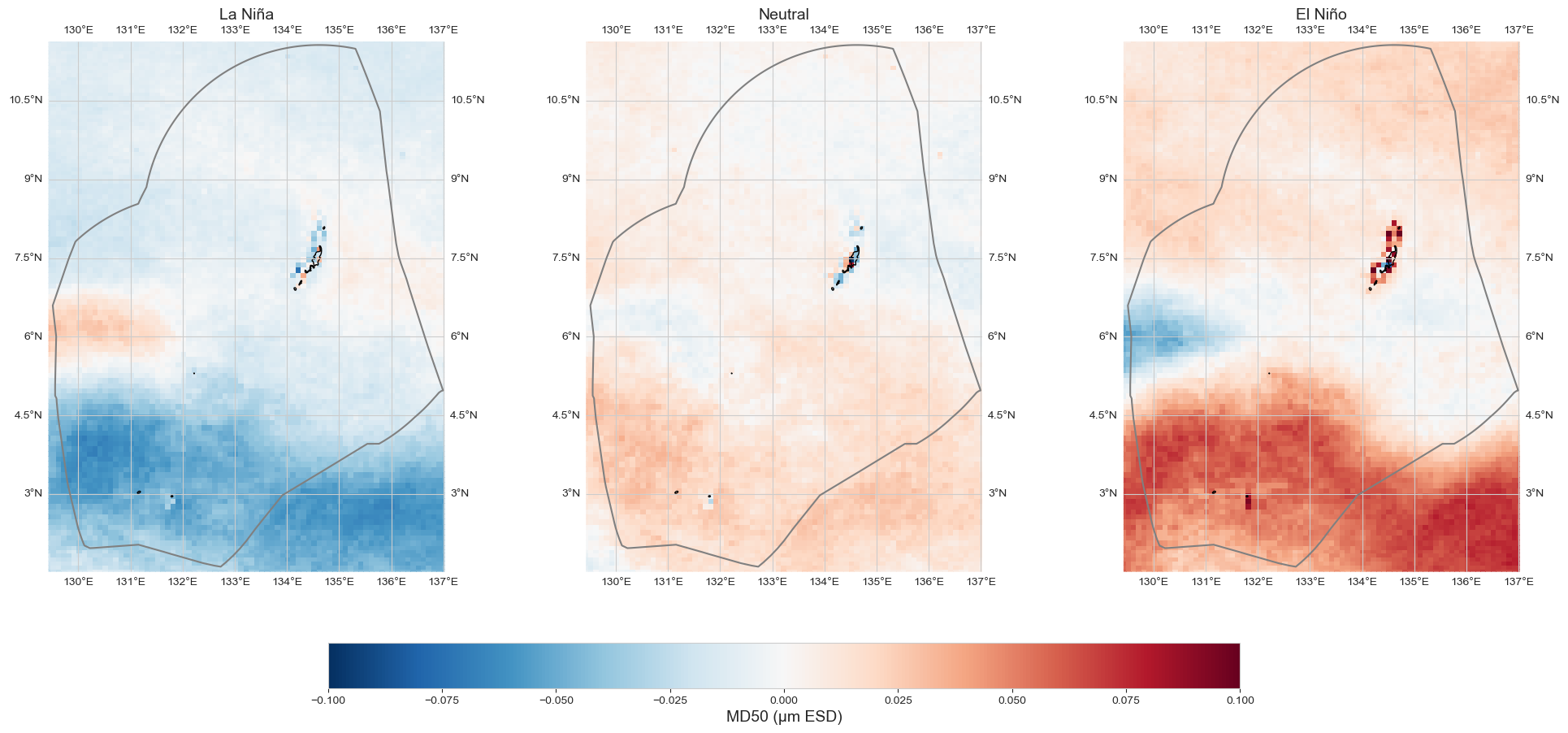

Anomaly

data_an = data_oni - data_xr.mean(dim='time')
fig = plot_map_subplots(data_an, dataset_id, shp_eez = shp_eez, cmap='RdBu_r', vmin=-.1, vmax=.1,
                  sub_plot= [1, 3], figsize = (20, 9),  cbar = True, cbar_pad = 0.1,
                  titles = ['La Niña', 'Neutral', 'El Niño'],)

Table

from ind_setup.tables import style_matrix, table_ocean
style_matrix(table_ocean(data_xr, trend[0], data_oni, dataset_id))

Key Metrics Summary

Metric	Value
Monthly Average	1.038
Monthly Maximum 01/02/2005	1.266
Monthly Minimum 01/09/1998	0.821
Maximum Annual Average	1.113
Minimum Annual Average	0.998
Rate of change [µm ESD/year]	-0.001
Change between 1998 and 2024 [µm ESD]	-0.026
Average La Niña MD50	1.020
Average El Niño MD50	1.061
Average Neutral MD50	1.046
