Minor Flood Frequency

Minor Flood Frequency#

../../../_images/2d1daf516cb5ed2d3cb89756908eda7ebb536035e7e7d1102c65f86275d902b3.png

In this notebook we will plot two indicators concerning flooding at the Malakal tide gauge, after first taking a general look at the type of data we are able to plot from the UH Sea Level Center. These indicators are based on a ‘flooding’ threshold, using relative sea level.

Setup#

We first need to import the necessary libraries, access the data, and make a quick plot to ensure we will be analyzing the right thing.

Import necessary libraries.#

import warnings
warnings.filterwarnings("ignore")
# Standard libraries
import os
import os.path as op
import datetime
from pathlib import Path
import sys

# Data manipulation libraries
import numpy as np
import pandas as pd
import xarray as xr

# Data analysis libraries
import scipy.stats as stats

# Visualization libraries
import matplotlib.pyplot as plt
import seaborn as sns
import cartopy.crs as ccrs
import cartopy.feature as cfeature
from matplotlib.colors import Normalize

from urllib.request import urlretrieve #used for downloading files

# Miscellaneous
from myst_nb import glue  # used for figure numbering when exporting to LaTeX

sys.path.append("../../../functions")
from data_downloaders import download_oni_index, download_uhslc_data
from sea_level_func import detect_enso_events

Next, we’ll establish our directory for saving and reading data, and our output files.

Caution

You will need to change the variable for “output_dir” to your own output path to save figures and tables to a place of your choosing.

data_dir = Path('../../../data')
path_figs = "../../../matrix_cc/figures"
data_dir = Path(data_dir,'sea_level')
output_dir = data_dir

# Create the output directory if it does not exist
output_dir.mkdir(exist_ok=True)
data_dir.mkdir(exist_ok=True)

Retrieve the Tide Station(s) Data Set(s)#

Next, we’ll access data from the UHSLC. The Malakal tide gauge has the UHSLC ID: 7. We will import the netcdf file into our current data directory, and take a peek at the dataset. We will also import the datums for this location.

and we’ll save a few variables that will come up later for report generation.

Set the Datum to MHHW#

In this example, we will set the datum to MHHW. This can be hard coded, or we can write a script to read in the station datum information from UHSLC, below.

def get_MHHW_uhslc_datums(id, datumname):

    url = 'https://uhslc.soest.hawaii.edu/stations/TIDES_DATUMS/fd/LST/fd'+f'{int(id):03}'+'/datumTable_'+f'{int(id):03}'+'_mm_GMT.csv'
    datumtable = pd.read_csv(url)
    datum = datumtable[datumtable['Name'] == datumname]['Value'].values[0]
    # ensure datum is a float
    datum = float(datum)
    return datum, datumtable

# extract the given datum from the dataframe
datumname = 'MHHW'

datum, datumtable = get_MHHW_uhslc_datums(uhslc_id, datumname)

rsl['datum'] = datum # already in mm
rsl['sea_level_mhhw'] = rsl['sea_level'] - rsl['datum']

# assign units to datum and sea level
rsl['datum'].attrs['units'] = 'mm'
rsl['sea_level_mhhw'].attrs['units'] = 'mm'

glue("datum", datum, display=False)
glue("datumname", datumname, display=False)

datumtable

Show code cell output Hide code cell output

	Name	Value	Description
0	Status	23-Aug-2025	Processing Date
1	Epoch	01-Jan-1983 to 31-Dec-2001	Tidal Datum Analysis Period
2	MHHW	2160	Mean Higher-High Water (mm)
3	MHW	2088	Mean High Water (mm)
4	MTL	1530	Mean Tide Level (mm)
5	MSL	1532	Mean Sea Level (mm)
6	DTL	1457	Mean Diurnal Tide Level (mm)
7	MLW	973	Mean Low Water (mm)
8	MLLW	754	Mean Lower-Low Water (mm)
9	STND	0	Station Datum (mm)
10	GT	1406	Great Diurnal Range (mm)
11	MN	1114	Mean Range of Tide (mm)
12	DHQ	72	Mean Diurnal High Water Inequality (mm)
13	DLQ	219	Mean Diurnal Low Water Inequality (mm)
14	HWI	Unavailable	Greenwich High Water Interval (in hours)
15	LWI	Unavailable	Greenwich Low Water Interval (in hours)
16	Maximum	2785	Highest Observed Water Level (mm)
17	Max Time	23-Jun-2013 22	Highest Observed Water Level Date and Hour (GMT)
18	Minimum	-34	Lowest Observed Water Level (mm)
19	Min Time	19-Jan-1992 16	Lowest Observed Water Level Date and Hour (GMT)
20	HAT	2567	Highest Astronomical Tide (mm)
21	HAT Time	27-Aug-1988 22	HAT Date and Hour (GMT)
22	LAT	175	Lowest Astronomical Tide (mm)
23	LAT Time	31-Dec-1986 16	LAT Date and Hour (GMT)
24	LEV	1644	Switch 1 (mm)
25	LEVB	1541	Switch 2 (mm)

Assess Station Data Quality for the POR (1983-2022)#

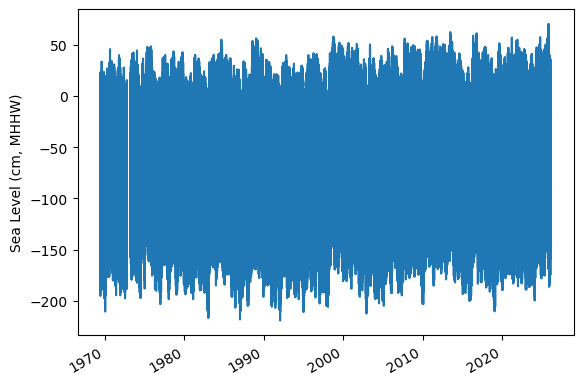

To do this, we’ll plot all the sea level data to make sure our data looks correct, and then we’ll truncate the data set to the time period of record (POR).

fig, ax = plt.subplots(sharex=True)
fig.autofmt_xdate()
ax.plot(rsl.time.values,rsl.sea_level_mhhw.T.values/10)

ax.set_ylabel(f'Sea Level (cm, {datumname})') #divide by 10 to convert to cm

glue("TS_full_fig",fig,display=False)

Identify epoch for the flood frequency analysis#

Now, we’ll calculate trend starting from the beginning of the tidal datum analysis period epoch to the last time processed. The epoch information is given in the datums table.

#get epoch start time from the epoch in the datumtable
epoch_times = datumtable[datumtable['Name'] == 'Epoch']['Value'].values[0]

#parse epoch times into start time
epoch_start = epoch_times.split(' ')[0]
epoch_start = datetime.datetime.strptime(epoch_start, '%d-%b-%Y')

# and for now, end time the processind end time
epoch_end = epoch_times.split(' ')[2]
epoch_end = datetime.datetime.strptime(epoch_end, '%d-%b-%Y')

# last date is rsl['last_rq_date'].values
data_end = rsl['time'].values[-1]
data_end = pd.to_datetime(data_end)

# start the data at year before epoch_start year on May 1st
data_start = pd.Timestamp(year=epoch_start.year-1, month=5, day=1)
data_start = pd.to_datetime(data_start)

# end the data at April 30th of the year of the last data request
data_end = pd.Timestamp(year=data_end.year, month=4, day=30)
data_end = pd.to_datetime(data_end)

hourly_data = rsl.sel(dict(time=slice(data_start, data_end)))
rsl.close()
hourly_data

glue("startDataDateTime",data_start.strftime('%Y-%m-%d'), display=False)
glue("endDataDateTime",data_end.strftime('%Y-%m-%d'), display=False)
glue("startEpochDateTime",epoch_start.strftime('%Y-%m-%d'), display=False)
glue("endEpochDateTime",epoch_end.strftime('%Y-%m-%d'), display=False)

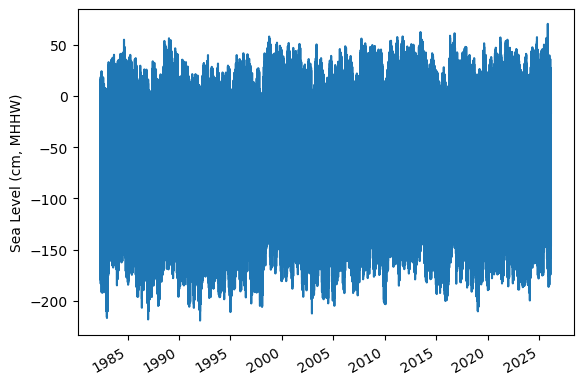

and plot the hourly time series

fig, ax = plt.subplots(sharex=True)
fig.autofmt_xdate()
ax.plot(hourly_data.time.values,hourly_data.sea_level_mhhw.T.values/10) #divide by 10 to convert to cm


ax.set_ylabel(f'Sea Level (cm, {datumname})')

glue("TS_epoch_fig",fig,display=False)

../../../_images/c54d93f5a648043b115c64ad7ed6ede9dcf8ed93b1f38c3d28bb8b1cac1447af.png — Fig. 6 Full time series at Malakal,Palau tide gauge for the entire record from 1982-05-01 to 2026-04-30. Note that the sea level is plotted in units of cm, relative to MHHW.#

Assign a Threshold#

The threshold used here to determine a flood event is 30 cm above MHHW.

Note

Change the threshold and see how things change!

threshold = 30 # in cm
glue("threshold",threshold,display=False)

Calculate Flood Frequency#

To analyze flood frequency, we will look for daily maximum sea levels for each day in our dataset, following and others. Then, we can group our data by year and month to visualize temporal patterns in daily SWL exceedance.

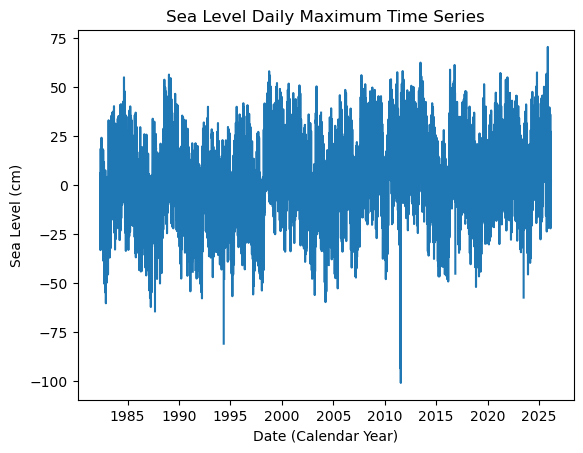

../../../_images/e21d3f0c816283dc91aadfc63f4d637b1b3f62633dc98da8ebdf85000be231de.png — Fig. 7 Histogram of daily maximum water levels at Malakal,Palau tide gauge for the entire record from 1982-05-01 to 2026-04-30, relative to MHHW. The dashed red line indicates the chosen threshold of 30 cm.#

# make a new figure that is 15 x 5
fig, ax = plt.subplots(sharex=True)
plt.plot(SL_daily_max.time.values, SL_daily_max.sea_level_mhhw.values/10)
plt.xlabel('Date (Calendar Year)')
plt.ylabel('Sea Level (cm)')
plt.title('Sea Level Daily Maximum Time Series')

Text(0.5, 1.0, 'Sea Level Daily Maximum Time Series')

../../../_images/4f369a67763b476549ea6f34ffd5b5909583e92654b77a6554683caf6d0e3aac.png

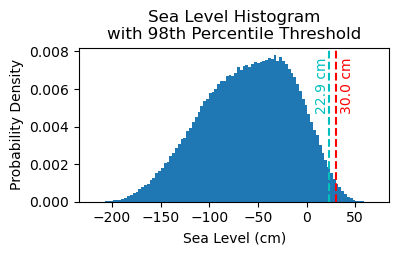

# Make a pdf of the data with 95th percentile threshold

sea_level_data_cm = hourly_data['sea_level_mhhw'].values/10 # convert to cm
#remove nans
sea_level_data_cm = sea_level_data_cm[~np.isnan(sea_level_data_cm)]

fig, ax = plt.subplots(figsize=(4,2))
ax.hist(sea_level_data_cm, bins=100, density=True, label='Sea Level Data')

#get 95th percentile
threshold98 = np.percentile(sea_level_data_cm, 98)

ax.axvline(threshold, color='r', linestyle='--', label='Threshold: {:.4f} cm'.format(threshold))
ax.axvline(threshold98, color='c', linestyle='--', label='Threshold: {:.4f} cm'.format(threshold98))

ax.set_xlabel('Sea Level (cm)')
ax.set_ylabel('Probability Density')
# make the title two lines
ax.set_title('Sea Level Histogram\nwith 98th Percentile Threshold')

# add label to dashed line
# get value of middle of y-axis for label placement
ymin, ymax = ax.get_ylim()
yrange = ymax - ymin
y_middle = ymin + 0.75*yrange

ax.text(threshold+4, y_middle, '{:.1f} cm'.format(threshold), rotation=90, va='center', ha='left', color='r')
ax.text(threshold98, y_middle, '{:.1f} cm'.format(threshold98), rotation=90, va='center', ha='right', color='c')

glue("histogram_fig", fig, display=False)

# Find all days where sea level exceeds the threshold
flood_days_df = SL_daily_max.to_dataframe().reset_index()

flood_days_df['year_storm'] = flood_days_df['time'].dt.year
flood_days_df.loc[flood_days_df['time'].dt.month > 4, 'year_storm'] = flood_days_df['time'].dt.year + 1

#filter flood hours
flood_days_df = flood_days_df[flood_days_df['sea_level_mhhw'] > threshold*10]

flood_days_per_year = flood_days_df.groupby('year_storm').size().reset_index(name='flood_days_count')

all_years = pd.DataFrame({'year_storm': range(flood_days_df['year_storm'].min(), flood_days_df['year_storm'].max() + 1)})

flood_days_per_year = all_years.merge(flood_days_per_year, on='year_storm', how='left').fillna(0)

flood_days_per_year['flood_days_count'] = flood_days_per_year['flood_days_count'].astype(int)

flood_hours_df = hourly_data.to_dataframe().reset_index()

flood_hours_df['year_storm'] = flood_hours_df['time'].dt.year
flood_hours_df.loc[flood_hours_df['time'].dt.month > 4, 'year_storm'] = flood_hours_df['time'].dt.year + 1

#filter flood hours
flood_hours_df = flood_hours_df[flood_hours_df['sea_level_mhhw'] > threshold*10]

flood_hours_per_year = flood_hours_df.groupby('year_storm').size().reset_index(name='flood_hours_count')

all_years = pd.DataFrame({'year_storm': range(flood_hours_df['year_storm'].min(), flood_hours_df['year_storm'].max() + 1)})

flood_hours_per_year = all_years.merge(flood_hours_per_year, on='year_storm', how='left').fillna(0)

flood_hours_per_year['flood_hours_count'] = flood_hours_per_year['flood_hours_count'].astype(int)

Let’s have a quick look at the data in flood_hours_per_year:

# show the first few rows of the flood_days_per_year dataframe
flood_days_per_year.head()

	year_storm	flood_days_count
0	1983	1
1	1984	33
2	1985	40
3	1986	9
4	1987	0

Plot Flood Frequency Counts#

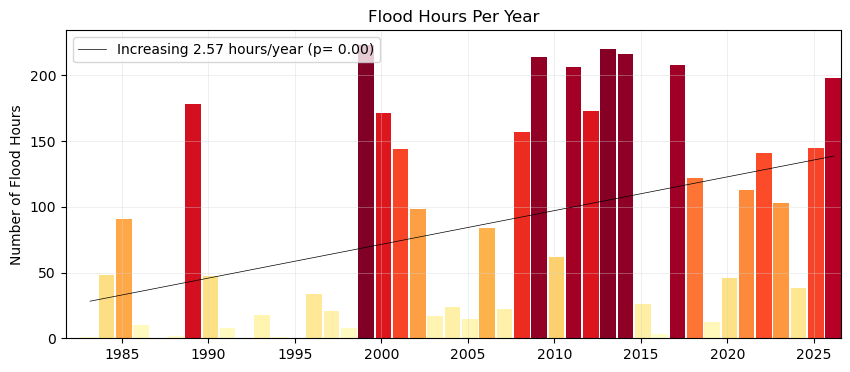

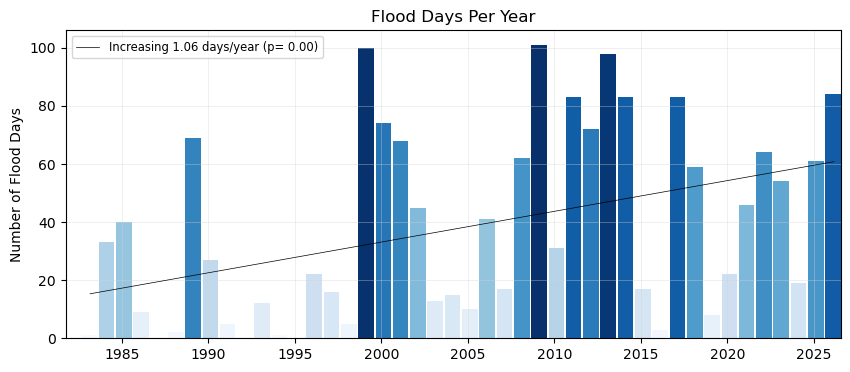

Now make a bar plot of the flood days (or hours) through time. We’ll begin with a regular bar plot of the counts of flood days. Then we’ll add a trend line. Then we’ll plot it alongside the ENSO signal, for a visual inspection of any correlating signals. This plot follows {cite:t}center_for_operational_oceanographic_products_and_services_us_sea_2014.

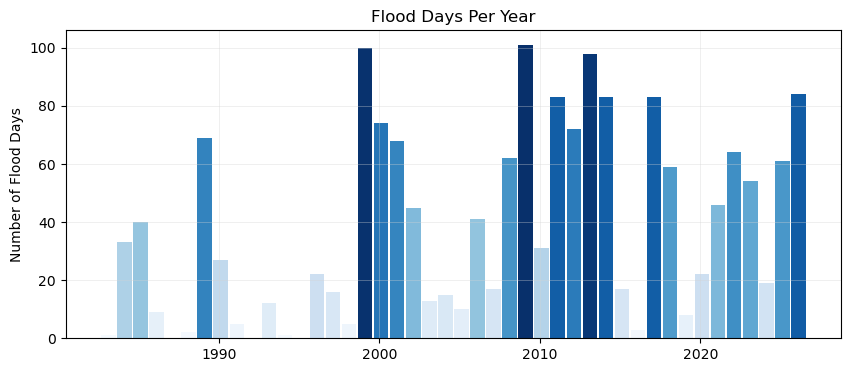

Simple bar plot#

The time axis will be in storm years, and all the bars will be colored by the count of flooding days (more intense blues for more flood days).

# Create two subplots sharing the same x-axis
fig, ax = plt.subplots(1, 1, figsize=(10, 4))

def plot_flood_count_per_year(flood_count_per_year, ax, timescale='days', colors='Blues',bar_width=0.9,alpha=1,grid=True):
    x_values = flood_count_per_year['year_storm']  # Assuming this is already aligned to storm years
    x_values_offset = x_values - 4/12  # Shift x-values to align with the storm years
    if timescale == 'days':
        y_values = flood_count_per_year['flood_days_count']
        ylabelstring = 'Number of Flood Days'
        titlestring = 'Flood Days Per Year'
    elif timescale == 'hours':
        y_values = flood_count_per_year['flood_hours_count']
        ylabelstring = 'Number of Flood Hours'
        titlestring = 'Flood Hours Per Year'


    if isinstance(colors, str):
        flooding_colors = sns.color_palette(colors, as_cmap=True)
        norm = Normalize(vmin=min(y_values), vmax=max(y_values))

        colors = flooding_colors(norm(y_values))
    ax.bar(x_values_offset, y_values, width=bar_width, color=colors, align='edge', alpha=alpha)


    ax.set_ylabel(ylabelstring)
    ax.set_title(titlestring)
    if grid:
        ax.grid(color='lightgray', linestyle='-', linewidth=0.5, alpha=0.5)
    return x_values_offset.values, y_values.values, bar_width

x, y, bar_width = plot_flood_count_per_year(flood_days_per_year, ax)

../../../_images/397363e99522758f006750ce5481e88c0aafd547c0472223efc62a58b5417bae.png

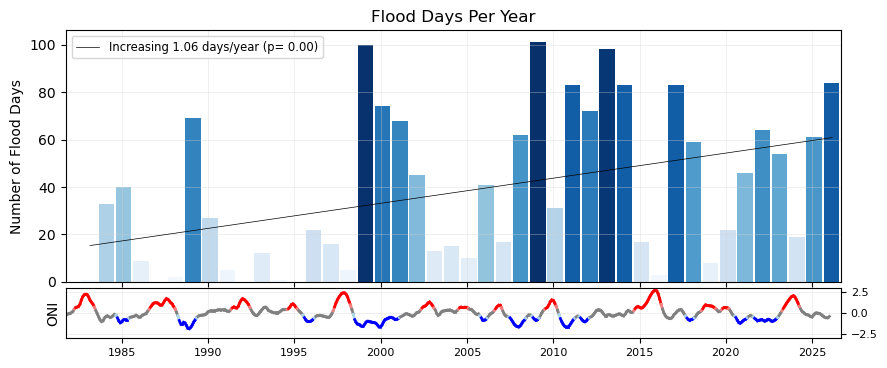

Simple bar plot with trend#

Now, let’s add a trend line to the plot, to see if there are any significant trends in flooding days since the start of our record.

def get_trend_info(x, y, timescale='days'):
    slope, intercept, r_value, p_value, std_err = stats.linregress(x, y)
    trendCounts = intercept + slope * x
    if timescale == 'days':
        trendLabel = 'Increasing {:.2f} days/year (p= {:.2f})'.format(slope,p_value)
    elif timescale == 'hours':
        trendLabel = 'Increasing {:.2f} hours/year (p= {:.2f})'.format(slope,p_value)
    linestyleTrend = '-' if p_value < 0.05 else '--'
    return trendCounts, trendLabel, linestyleTrend, slope, p_value

def plot_trend(x, y, ax, timescale='days'):
    trendCounts, trendLabel, linestyleTrend, slope, p_value = get_trend_info(x, y, timescale=timescale)
    ax.plot(x, trendCounts, color='black', linestyle=linestyleTrend, label=trendLabel, linewidth=0.5)
    ax.legend(loc='upper left', fontsize='small')
    return slope, p_value, trendCounts

fig, ax = plt.subplots(1, 1, figsize=(10, 4))

x, y, bar_width = plot_flood_count_per_year(flood_days_per_year, ax, timescale='days')
slope_days, p_value_days, trendDays = plot_trend(x+0.5, y, ax)

# # Set x-limits to ensure all bars are visible
ax.set_xlim(x.min() - bar_width, x.max() + bar_width);

glue("fig-threshold_counts", fig, display=False)

Plot Flood Frequency Duration#

We’ll do the same plot, but this time use our flooding hours data to examine the average duration of flooding events as defined by the threshold. Note that in this calculation these hours need not be continuous (and thus any changes in the scale of the flooding in terms of time-extent is not readily apparent, only the yearly summation.)

fig, ax = plt.subplots(1, 1, figsize=(10, 4))

x, y, bar_width = plot_flood_count_per_year(flood_hours_per_year, ax, timescale='hours',colors='YlOrRd')
slope_hours, p_value_hours, trendHours = plot_trend(x+0.5, y, ax, timescale='hours')

# # Set x-limits to ensure all bars are visible
ax.set_xlim(x.min() - bar_width, x.max() + bar_width);

# # save the trendline values
glue("hours_per_year_trend",slope_hours,display=False)
glue("p_value_hours",p_value_hours,display=False)

# Adding the legend
ax.legend(loc='upper left')

glue("duration_fig", fig, display=False)

../../../_images/c9299f1ebaf059ec90beecd33ae5f12993e9a53539d539575c5a39978944f081.png

Add the ENSO signal to bar plots#

First we’ll download our ONI data

# add nino
p_data = 'https://psl.noaa.gov/data/correlation/oni.data'
oni = download_oni_index(p_data)
enso_events = detect_enso_events(oni)

We’ll turn this into yearly data by looking at the dominant enso mode for that storm year.

#turn oni events into yearly dataframe
def get_dominant_enso(series):
    el_nino_count = (series == 'El Nino').sum()
    la_nina_count = (series == 'La Nina').sum()

    if el_nino_count > la_nina_count:
        return 'El Nino'
    elif la_nina_count > el_nino_count:
        return 'La Nina'
    else:
        return 'Neutral'

enso_yearly = enso_events.groupby('year_storm')['ONI Mode'].agg(get_dominant_enso).to_frame(name='ONI Mode')
enso_yearly['ONI'] = enso_events.groupby('year_storm')['ONI'].mean()
enso_yearly

	ONI Mode	ONI
year_storm
1950	Neutral	-0.337500
1951	El Nino	0.670833
1952	El Nino	0.237500
1953	El Nino	0.586667
1954	La Nina	-0.697500
...	...	...
2022	La Nina	-0.613333
2023	El Nino	1.416667
2024	Neutral	-0.092500
2025	Neutral	-0.318889
2026	Neutral	NaN

77 rows × 2 columns

# add enso events to flood_days_per_year
flood_days_per_year = flood_days_per_year.merge(enso_yearly, on='year_storm', how='left')
flood_days_per_year.head()

	year_storm	flood_days_count	ONI Mode	ONI
0	1983	1	El Nino	-0.246667
1	1984	33	La Nina	-0.643333
2	1985	40	La Nina	-0.434167
3	1986	9	El Nino	0.745000
4	1987	0	El Nino	1.005833

Plot the ONI signal through time#

We’ll color it by El Nino/La Nina

fig, ax = plt.subplots(1, 1, figsize=(10, 4))

def plot_ONI_segments(enso_events, ax):
    """
    Plots the ONI index as line segments colored by ENSO mode.

    Parameters:
    enso_events (pd.DataFrame): DataFrame containing 'ONI', 'ONI Mode', and 'year_float' columns.
    ax (matplotlib.axes.Axes): The axes to plot on.
    """

    enso_events['year_float'] = enso_events.index.year + (enso_events.index.month - 1) / 12

    ax.set_ylabel('ONI')
    ax.grid(color='lightgray', linestyle='-', linewidth=0.5, alpha=0.5)
    ax.set_ylim(-3, 3)

    # Plot line segments with colors based on BOTH endpoints' ENSO modes
    for i in range(len(enso_events) - 1):
        x_segment = enso_events['year_float'].iloc[i:i+2]
        y_segment = enso_events['ONI'].iloc[i:i+2]
        mode_start = enso_events['ONI Mode'].iloc[i]
        mode_end = enso_events['ONI Mode'].iloc[i+1]

        # Only color the segment if BOTH points have the same mode
        if mode_start == mode_end:
            if mode_start == 'La Nina':
                color = 'blue'
            elif mode_start == 'El Nino':
                color = 'red'
            else:
                color = 'gray'
        elif mode_start != mode_end:
            if mode_start == 'La Nina' and mode_end == 'Neutral':
                color = 'lightblue'  # Transition from La Nina to Neutral
            elif mode_start == 'Neutral' and mode_end == 'La Nina':
                color = 'lightblue'  # Transition from Neutral to La Nina
            elif mode_start == 'El Nino' and mode_end == 'Neutral':
                color = 'lightcoral'  # Transition from El Nino to Neutral
            elif mode_start == 'Neutral' and mode_end == 'El Nino':
                color = 'lightcoral'  # Transition from Neutral to El Nino
            else:
            # Transition segment - use gray
                color = 'gray'

        ax.plot(x_segment, y_segment, color=color, linewidth=2)


    # put y-axis labels on the right side
    ax.yaxis.tick_right()

    # set font size for tick labels
    ax.tick_params(axis='both', which='major', labelsize=8)

plot_ONI_segments(enso_events, ax)

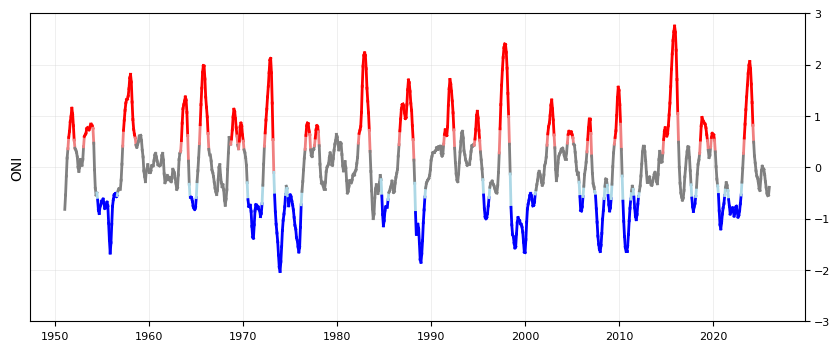

../../../_images/9b0526b692e858d1b3501b5901f78ede6929e7808d3a1e409241770ea52ebc65.png

Plot combined flood days with ENSO signal#

Now we’ll combine our previous plots into one.

# Create two subplots sharing the same x-axis
fig, (ax1, ax2) = plt.subplots(
    2, 1, figsize=(10, 4),  sharex=True, gridspec_kw={"height_ratios": [5, 1],"hspace": 0.04, }
)

x, y, bar_width = plot_flood_count_per_year(flood_days_per_year, ax1)
slope_days, p_value_days, trendDays= plot_trend(x+0.5, y, ax1);
plot_ONI_segments(enso_events, ax2)

ax1.set_xlim(x.min()-bar_width, x.max()+1);

# # # save the trendline values
glue("day_per_year_trend",slope_days,display=False);
glue("p_value_days",p_value_days,display=False);

# save the figure

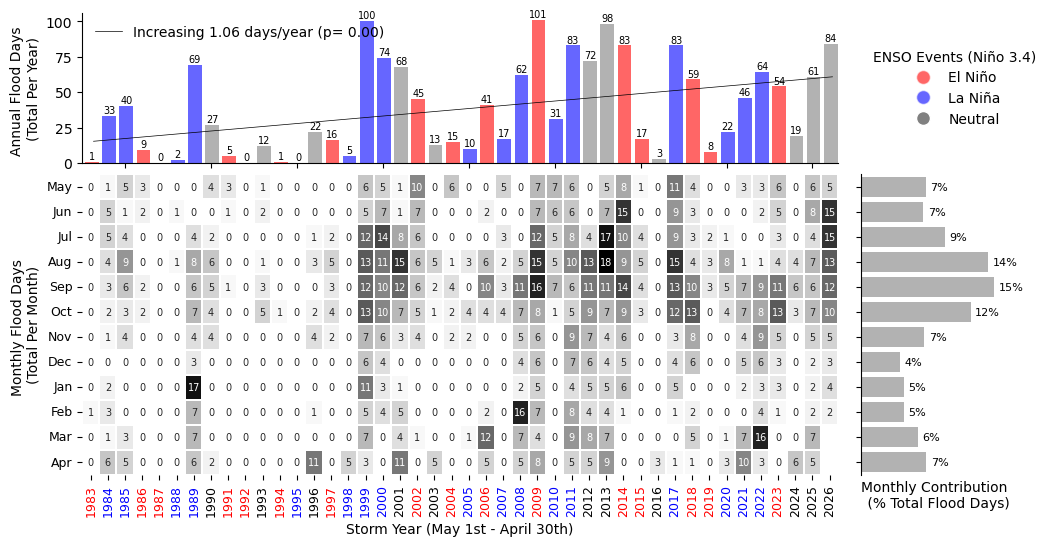

glue("fig-threshold_counts_enso", fig, display=False)

# save to output directory
fig.savefig(output_dir / "SL_FloodFrequency_threshold_counts_days.png", dpi=300, bbox_inches='tight')

Create a Table#

Next we’ll calculate some summary statistics over the POR at the tide station/s, for both Frequency and Duration.

We will include the trendline statistics from our previous plots.

# Calculate the total number of days/hours exceeding the threshold
total_flood_days = flood_days_per_year['flood_days_count'].sum()
total_flood_hours = flood_hours_per_year['flood_hours_count'].sum()

# Calculate the average number of flood days and hours per year
average_flood_days_per_year = total_flood_days / len(flood_days_per_year)
average_flood_hours_per_year = flood_hours_per_year['flood_hours_count'].mean()

# Find the maximum number of flood days in a single year
max_flood_days = flood_days_per_year['flood_days_count'].max()
max_flood_days_year = flood_days_per_year.loc[flood_days_per_year['flood_days_count'].idxmax(), 'year_storm']

# Find the maximum number of flood hours in a single year
max_flood_hours = flood_hours_per_year['flood_hours_count'].max()
max_flood_hours_year = flood_hours_per_year.loc[flood_hours_per_year['flood_hours_count'].idxmax(), 'year_storm']

# calculate the absolute percent change over the entire period using the first and last part of the trend
percent_change_days = (trendDays[-1]-trendDays[0])/trendDays[0]*100
percent_change_hours = (trendHours[-1]-trendHours[0])/trendHours[0]*100

Now we’ll generate a table with this information, which will be saved as a .csv in the output directory specified at the top of this notebook.

# Create a dataframe for statistics
summary_stats = [
    ('Total Flood Days', int(total_flood_days)),
    ('Average Flood Days per Year', int(average_flood_days_per_year)),
    ('Max Flood Days in a Single Year', int(max_flood_days)),
    ('Year of Max Flood Days', int(max_flood_days_year)),
    ('Total Flood Hours', int(total_flood_hours)),
    ('Average Flood Hours per Year', int(average_flood_hours_per_year)),
    ('Max Flood Hours in a Single Year', int(max_flood_hours)),
    ('Year of Max Flood Hours', int(max_flood_hours_year)),
    ('Percent Change in Flood Days', int(percent_change_days)),
    ('Percent Change in Flood Hours', int(percent_change_hours)),
    ('Trend in Flood Days (days/year)', round(slope_days, 2)),
    ('P-value for Flood Days Trend', round(p_value_days, 2)),
    ('Trend in Flood Hours (hours/year)', round(slope_hours, 2)),
    ('P-value for Flood Hours Trend', round(p_value_hours, 2))
]

# Convert the list of tuples to a pandas DataFrame
summary_stats_df = pd.DataFrame(summary_stats, columns=['Statistic', 'Value'])

# Display the DataFrame
summary_stats_df

	Statistic	Value
0	Total Flood Days	1675.00
1	Average Flood Days per Year	38.00
2	Max Flood Days in a Single Year	101.00
3	Year of Max Flood Days	2009.00
4	Total Flood Hours	3668.00
5	Average Flood Hours per Year	83.00
6	Max Flood Hours in a Single Year	223.00
7	Year of Max Flood Hours	1999.00
8	Percent Change in Flood Days	296.00
9	Percent Change in Flood Hours	391.00
10	Trend in Flood Days (days/year)	1.06
11	P-value for Flood Days Trend	0.00
12	Trend in Flood Hours (hours/year)	2.57
13	P-value for Flood Hours Trend	0.00

Create a sub-annual table#

Here we’ll turn our ‘flooding days’ into a dataframe to look at monthly changes through time.

Show code cell source Hide code cell source

import calendar
# Make a dataframe with years as rows and months as columns
df = SL_daily_max.to_dataframe().reset_index()
df['flood_day'] = df['sea_level_mhhw'] > threshold*10

# keep only the flood day and time columns
df = df[['time', 'flood_day']]

df['year'] = df['time'].dt.year
df['month'] = df['time'].dt.month

# adjust for storm year
df.loc[df['month'] > 4, 'year'] = df.loc[df['month'] > 4, 'year'] + 1

# drop original time column
df = df.drop(columns=['time'])

# sum the number of flood days in each month for each storm year
df = df.groupby(['year', 'month']).sum()

# pivot the table
df = df.pivot_table(index='year', columns='month', values='flood_day')

# remove first and last rows (partial years)
# df = df.iloc[1:-1]

# rename year to Storm Year
df.index.name = 'Storm Year'

#define reordered months (for storm year, May to April)
month_order = [5,6,7,8,9,10,11,12,1,2,3,4]
month_names = [calendar.month_abbr[i] for i in month_order]
# rename months to month names
df = df[month_order]
df.columns = month_names

# add a column for the total number of flood days in each year
df['Annual'] = df.sum(axis=1)



# add a row for the total number of flood days in each month, normalized the total flood days (last row, last column)
df.loc['Monthly Total (%)'] = df.sum()
df.loc['Monthly Total (%)'] = 100*df.loc['Monthly Total (%)']/df.loc['Monthly Total (%)', 'Annual']

# station_name = SL_daily_max['station_name'] +', ' + SL_daily_max['station_country']

tableTitle = station_name + ': Days Exceeding ' + str(threshold) + ' cm above MHHW'
# Apply background gradient and add a title with larger text
styled_df = df.style.background_gradient(
    cmap='Purples', axis=None, subset=(df.index[:-1], df.columns[:-1])
).format("{:.0f}").background_gradient(
    cmap='Grays', axis=None, subset=(df.index[-1], df.columns[:-1])
).format("{:.0f}").set_caption(tableTitle).set_table_styles([
    {
        'selector': 'caption',
        'props': [('font-size', '16px'), ('margin-bottom', '10px')]
    }
])

styled_df

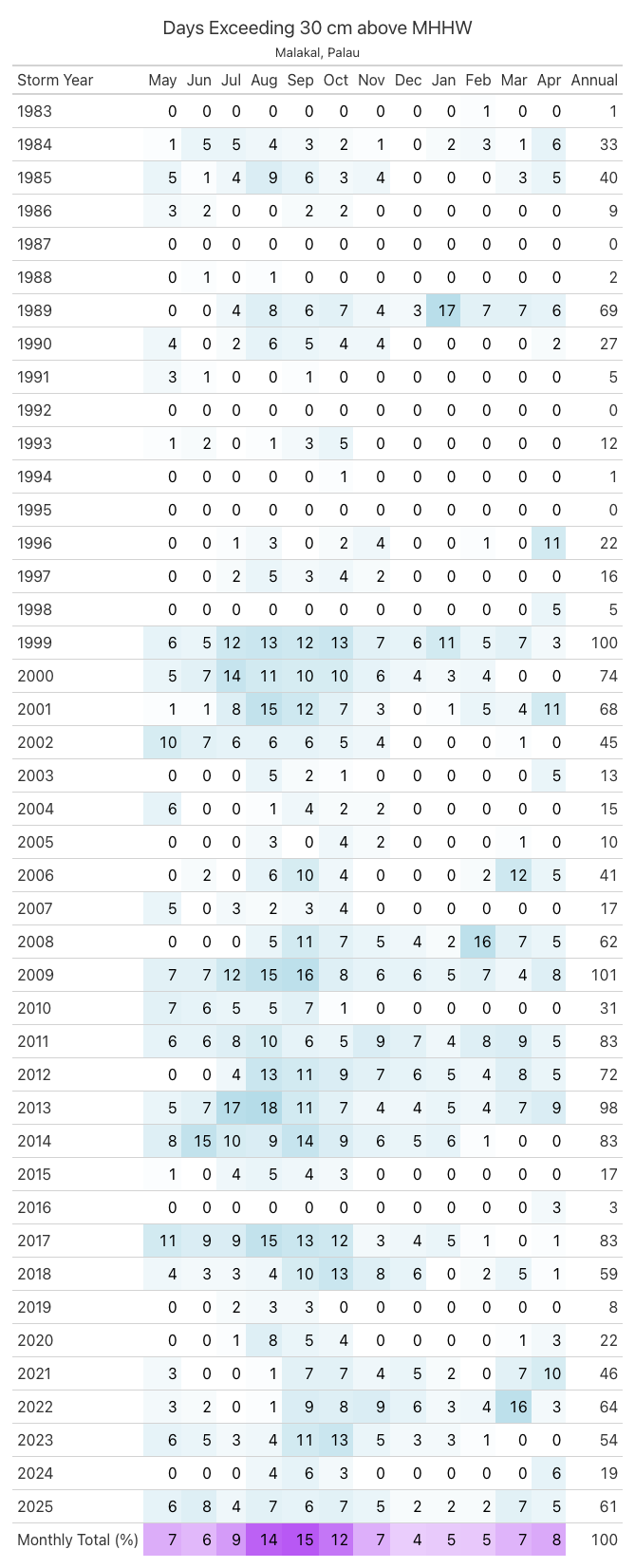

Malakal, Palau: Days Exceeding 30 cm above MHHW
	May	Jun	Jul	Aug	Sep	Oct	Nov	Dec	Jan	Feb	Mar	Apr	Annual
Storm Year
1983	0	0	0	0	0	0	0	0	0	1	0	0	1
1984	1	5	5	4	3	2	1	0	2	3	1	6	33
1985	5	1	4	9	6	3	4	0	0	0	3	5	40
1986	3	2	0	0	2	2	0	0	0	0	0	0	9
1987	0	0	0	0	0	0	0	0	0	0	0	0	0
1988	0	1	0	1	0	0	0	0	0	0	0	0	2
1989	0	0	4	8	6	7	4	3	17	7	7	6	69
1990	4	0	2	6	5	4	4	0	0	0	0	2	27
1991	3	1	0	0	1	0	0	0	0	0	0	0	5
1992	0	0	0	0	0	0	0	0	0	0	0	0	0
1993	1	2	0	1	3	5	0	0	0	0	0	0	12
1994	0	0	0	0	0	1	0	0	0	0	0	0	1
1995	0	0	0	0	0	0	0	0	0	0	0	0	0
1996	0	0	1	3	0	2	4	0	0	1	0	11	22
1997	0	0	2	5	3	4	2	0	0	0	0	0	16
1998	0	0	0	0	0	0	0	0	0	0	0	5	5
1999	6	5	12	13	12	13	7	6	11	5	7	3	100
2000	5	7	14	11	10	10	6	4	3	4	0	0	74
2001	1	1	8	15	12	7	3	0	1	5	4	11	68
2002	10	7	6	6	6	5	4	0	0	0	1	0	45
2003	0	0	0	5	2	1	0	0	0	0	0	5	13
2004	6	0	0	1	4	2	2	0	0	0	0	0	15
2005	0	0	0	3	0	4	2	0	0	0	1	0	10
2006	0	2	0	6	10	4	0	0	0	2	12	5	41
2007	5	0	3	2	3	4	0	0	0	0	0	0	17
2008	0	0	0	5	11	7	5	4	2	16	7	5	62
2009	7	7	12	15	16	8	6	6	5	7	4	8	101
2010	7	6	5	5	7	1	0	0	0	0	0	0	31
2011	6	6	8	10	6	5	9	7	4	8	9	5	83
2012	0	0	4	13	11	9	7	6	5	4	8	5	72
2013	5	7	17	18	11	7	4	4	5	4	7	9	98
2014	8	15	10	9	14	9	6	5	6	1	0	0	83
2015	1	0	4	5	4	3	0	0	0	0	0	0	17
2016	0	0	0	0	0	0	0	0	0	0	0	3	3
2017	11	9	9	15	13	12	3	4	5	1	0	1	83
2018	4	3	3	4	10	13	8	6	0	2	5	1	59
2019	0	0	2	3	3	0	0	0	0	0	0	0	8
2020	0	0	1	8	5	4	0	0	0	0	1	3	22
2021	3	0	0	1	7	7	4	5	2	0	7	10	46
2022	3	2	0	1	9	8	9	6	3	4	16	3	64
2023	6	5	3	4	11	13	5	3	3	1	0	0	54
2024	0	0	0	4	6	3	0	0	0	0	0	6	19
2025	6	8	4	7	6	7	5	2	2	2	7	5	61
2026	5	15	15	13	12	10	5	3	4	2	nan	nan	84
Monthly Total (%)	7	7	9	14	15	12	7	4	5	5	6	7	100

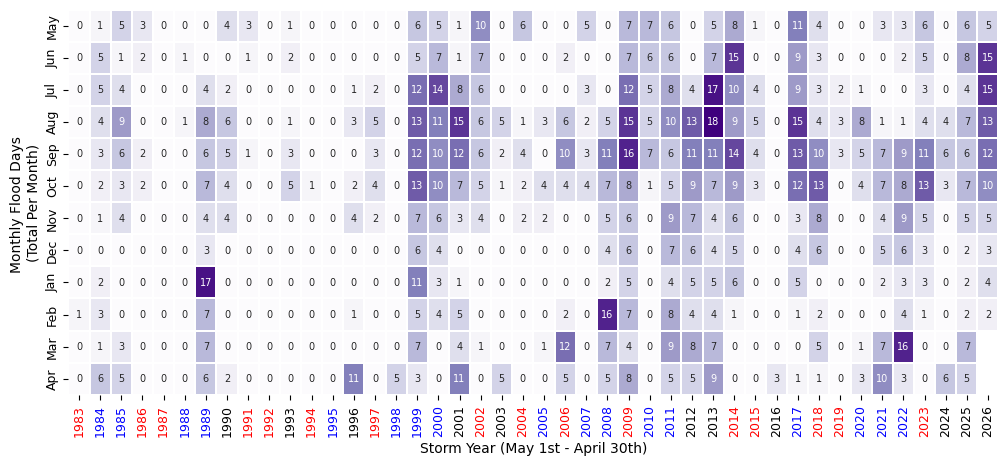

We can also make this in plot form (instead of a styled dataframe).

fig, ax = plt.subplots(figsize=(12, 5))
# heatmap of monthly flood days
sns.heatmap(df.iloc[:-1, :-1].T, cmap="Purples", annot=True, fmt=".0f", linewidths=0.2,
            ax=ax,cbar=False, annot_kws={"size": 7})
ax.set_ylabel("Monthly Flood Days \n(Total Per Month)")
ax.set_xlabel("Storm Year (May 1st - April 30th)")
ax.tick_params(axis='y', labelsize=9)
ax.tick_params(axis='x', labelsize=9)

# Create a mapping from year to ONI mode
year_to_mode = flood_days_per_year.set_index('year_storm')['ONI Mode']
color_map = {'El Nino': 'red', 'La Nina': 'blue', 'Neutral': 'black'}

# Set the color for each x-tick label based on the ONI mode for that year
for label in ax.get_xticklabels():
    year = int(label.get_text())
    mode = year_to_mode.get(year, 'Neutral')  # Default to 'Neutral' if not found
    label.set_color(color_map.get(mode, 'black')) # Default to 'black'

../../../_images/5ee00a2501982a212219fdd772143a7bfa2cea905215008625e49de5380f62fa.png

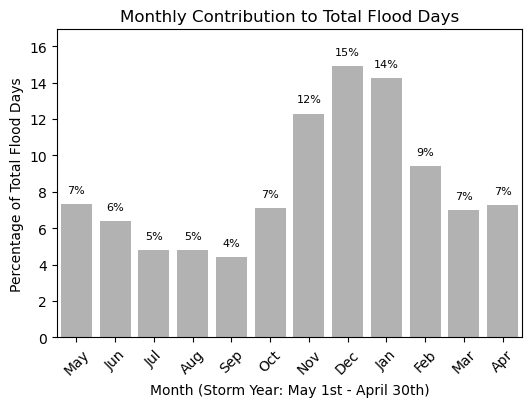

Plot Monthly Frequency Bar Plot#

We can also make this information into a bar plot to compare the monthly contribution visually. This code is made so the bar plot can be plotted in either vertical or horizontal bars. This will come up later when we combine our tables and plots into one summary figure.

# # bar plot of monthly totals
fig,ax = plt.subplots(figsize=(6, 4))

def plot_monthly_contribution(df, ax, direction='vertical'):

    if direction == 'horizontal':
        ax.barh(range(1, 13), df.iloc[-1, :-1][::-1], color="gray", alpha=0.6, label="Monthly Contribution \n (% Total Flood Days)")
        ax.set_yticks(range(1, 13))
        ax.set_ylim(0.5, 12.5)
        ax.set_yticklabels(month_names[::-1])
        # add labels and title
        ax.set_ylabel('Month (Storm Year: May 1st - April 30th)')
        ax.set_xlabel('Percentage of Total Flood Days')
                # adjust layout to avoid clipping of labels
        ax.set_xlim(0, df.iloc[-1, :-1][::-1].max() + 2)
        # annotate the percentage values on top of the bars
        for i, value in enumerate(df.iloc[-1, :-1][::-1]):
            ax.text( value + 0.5,i + 1, f'{value:.0f}%', ha='left', va='center', fontsize=8)
    elif direction == 'vertical':
        ax.bar(range(1, 13), df.iloc[-1, :-1][::-1], color="gray", alpha=0.6, label="Monthly Contribution \n (% Total Flood Days)")
        # ensure each month is labeled
        ax.set_xticks(range(1, 13))
        ax.set_xlim(0.5, 12.5)
        # relabel x-axis with month names
        ax.set_xticklabels(month_names, rotation=45)

        # add labels and title
        ax.set_xlabel('Month (Storm Year: May 1st - April 30th)')
        ax.set_ylabel('Percentage of Total Flood Days')
        # adjust layout to avoid clipping of labels
        ax.set_ylim(0, df.iloc[-1, :-1][::-1].max() + 2)
        # annotate the percentage values on top of the bars
        for i, value in enumerate(df.iloc[-1, :-1][::-1]):
            ax.text(i + 1, value + 0.5, f'{value:.0f}%', ha='center', va='bottom', fontsize=8)


    ax.set_title('Monthly Contribution to Total Flood Days')



plot_monthly_contribution(df, ax, direction='vertical')

../../../_images/4ebb71618efa28ddbaa1f34910793dd092acb150189575e25d49ffec4d093f66.png

We can also make a nice table for printed reports.

# Define the decades for analysis
decades = [(1983, 1993), (1993, 2003), (2003, 2013), (2013, 2023)]

# Initialize lists to store results
total_flood_days_list = []
average_flood_days_per_year_list = []
percent_increase_days_per_year_list = [0]  # First decade has no previous data for comparison

# Calculate statistics for each decade
for i, (start_year, end_year) in enumerate(decades):
    # Filter the dataframe for the current decade
    flood_days_decade = flood_days_per_year[(flood_days_per_year['year_storm'] >= start_year) & (flood_days_per_year['year_storm'] <= end_year)]
    sum_flood_days_decade = flood_days_decade['flood_days_count'].sum()
    avg_flood_days_decade = sum_flood_days_decade / len(flood_days_decade)

    # Append results to lists
    total_flood_days_list.append(sum_flood_days_decade)
    average_flood_days_per_year_list.append(np.round(avg_flood_days_decade,0))

    # Calculate percent increase for subsequent decades
    if i > 0:
        prev_avg_flood_days = average_flood_days_per_year_list[0]
        percent_increase = np.round((avg_flood_days_decade - prev_avg_flood_days) / prev_avg_flood_days * 100, 1)
        percent_increase_days_per_year_list.append(percent_increase)

# Create a dataframe for decadal statistics
decadal_stats = pd.DataFrame({
    'decade': ['1983-1993', '1993-2003', '2003-2013', '2013-2023'],
    'total_flood_days': total_flood_days_list,
    'average_flood_days_per_year': average_flood_days_per_year_list,
    'percent_increase_days_per_year': percent_increase_days_per_year_list
})

decadal_stats

	decade	total_flood_days	average_flood_days_per_year	percent_increase_days_per_year
0	1983-1993	198	18.0	0.0
1	1993-2003	356	32.0	79.8
2	2003-2013	543	49.0	174.2
3	2013-2023	537	49.0	171.2

Join plots and tables#

import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd


# Create a figure and shared axis layout
fig, axs = plt.subplots(2,2,figsize=(12,6), gridspec_kw={"height_ratios": [1, 2], "hspace": 0.05, "width_ratios":[5,1], "wspace": 0.05})

# put stuff in the figure

# heatmap of monthly flood days on the bottom left axis
sns.heatmap(df.iloc[:-1, :-1].T, cmap="Grays", annot=True, fmt=".0f", linewidths=0.2,
            ax=axs[1,0],cbar=False, annot_kws={"size": 7})
axs[1,0].set_ylabel("Monthly Flood Days \n(Total Per Month)")
axs[1,0].set_xlabel("Storm Year (May 1st - April 30th)")
axs[1,0].tick_params(axis='y', labelsize=9)
axs[1,0].tick_params(axis='x', labelsize=9)

# Set the color for each x-tick label based on the ONI mode for that year
for label in axs[1,0].get_xticklabels():
    year = int(label.get_text())
    mode = year_to_mode.get(year, 'Neutral')  # Default to 'Neutral' if not found
    label.set_color(color_map.get(mode, 'black')) # Default to 'black'


# yearly totals on the top left axis
ax2 = axs[0,0]

# color by enso_event
enso_colors = ['red' if val == 'El Nino' else 'blue' if val == 'La Nina' else 'gray' for val in flood_days_per_year['ONI Mode']]
x, y, bar_width = plot_flood_count_per_year(flood_days_per_year, ax2, timescale='days',
                                            colors=enso_colors,grid=False,alpha=0.6,bar_width=0.8)

# bars = ax2.bar(df.index[0:-1], df["Annual"][0:-1], color=enso_colors, alpha=0.6)
ax2.set_xlim(df.index[0]-0.5, df.index[-2]+0.5)

# annotate bars with their values
for xi, yi in zip(x, y):
    ax2.text(xi + bar_width / 2, yi + 0.5, str(int(yi)), ha='center', va='bottom', fontsize=7, color='black')

# remove top and right boundaries
for spine in ['top', 'right']:
    ax2.spines[spine].set_visible(False)
ax2.set_ylabel("Annual Flood Days \n(Total Per Year)")
ax2.set_title("")
ax2.grid(visible=False)

# add trendline to the yearly totals on ax2
slope_days, p_value_days, trendDays = plot_trend(x+0.5, y, ax2)
legend = ax2.legend(loc='upper left', fontsize='small', frameon=False, prop={'family': 'DejaVu Sans'})


# # bar plot of monthly totals on the bottom right axis
ax3 = axs[1,1]
barMonth = plot_monthly_contribution(df, ax3, direction='horizontal')
ax3.set_yticklabels([])
ax3.set_ylabel("")
ax3.set_title("")
# #remove x-axis ticks and labels
ax3.set_xticks([])
ax3.set_xlabel("Monthly Contribution \n (% Total Flood Days)")

# #remove top and right boundaries
for spine in ax3.spines.values():
    spine.set_visible(False)

ax3.spines['left'].set_visible(True)


# add a legend in the remaining axis (top right)
# ax[0,1] defines the coloring we used in the yearly total bar plot
ax4 = axs[0,1]
ax4.axis('off')
# create a legend for the oni_colors
legend_elements = [plt.Line2D([0], [0], marker='o', color='w', label='El Niño', markerfacecolor='red', markersize=10, alpha=0.6),
                   plt.Line2D([0], [0], marker='o', color='w', label='La Niña', markerfacecolor='blue', markersize=10, alpha=0.6),
                   plt.Line2D([0], [0], marker='o', color='w', label='Neutral', markerfacecolor='gray', markersize=10)]
legend = ax4.legend(handles=legend_elements, loc='center left', title='ENSO Events (Niño 3.4)', frameon=False)


legend_title = legend.get_title()
legend_title.set_fontsize('10')
legend_title.set_fontname('DejaVu Sans')
legend_texts = legend.get_texts()
for text in legend_texts:
    text.set_fontname('DejaVu Sans')
    text.set_fontsize('10')


# set all fonts in the figure to DejaVu Sans
# Iterate over all axes in the figure
for ax in axs.flat:
    # Change font for title, axis labels, and tick labels
    for item in ([ax.title, ax.xaxis.label, ax.yaxis.label] +
                 ax.get_xticklabels() + ax.get_yticklabels()):
        item.set_fontname('DejaVu Sans')


# #save the figure
fig.savefig(output_dir / 'SL_FloodFrequency_threshold_counts_heatmap.png', bbox_inches='tight')
plt.savefig(op.join(path_figs, 'F11_Minor_flood_matrix.png'), dpi=300, bbox_inches='tight')

../../../_images/5b7469f8be1945c3f8f55e0e73bc0c0873ad941030e7a2224286db903014ecec.png

../../../_images/af2170add281aa317e34e8e3106257f0587db717522550e6167d0fc4645b94ad.png — Fig. 9 Monthly and Annual tally of flooding days at Malakal, Palau .#
